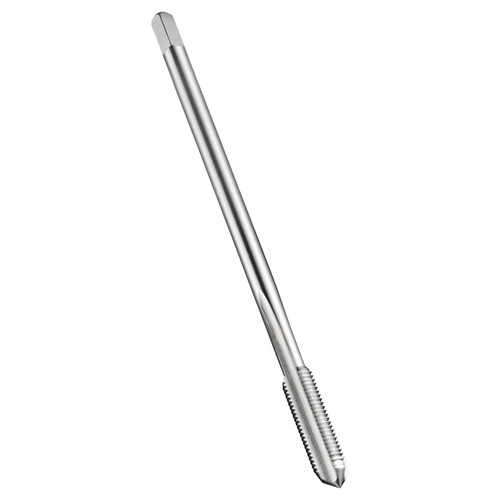

Straight flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for Unified National Fine thread UNF 3/4" with 16 TPI and 2B class of fit, dimensions according to DIN 374 standard with 14.0mm shank and 11.0mm square drive, powder metallurgical HSS-E with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel.
Product Specifications
| Connection Diameter (Inch) | 0.5512" |
| Overall Length (Inch) | 4.9213" |
| Clamping Width (mm) | 11mm |
| Thread Diameter (mm) | 19.05mm |
| No of Flutes | 4 |
| Clamping Length | 14 |
| Thread Diameter Size | 3/4 |
| Threading Length (mm) | 25mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 2B |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Bright Silver |
| Thread Form | UNF-Unified Fine |
