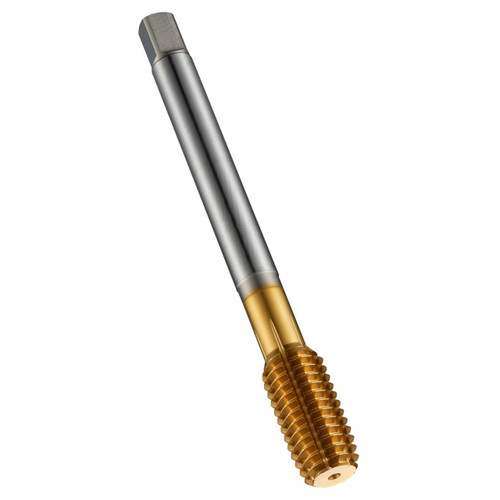

Thread forming tap with lube grooves with chamfer form C with a 2-3xP semi-bottoming lead, for Unified National Coarse thread UNC 1/4" with 20 TPI and 2BX class of fit, dimensions according to DIN 2184-1 standard with 7.0mm shank and 5.5mm square drive, cobalt based HSS-E with TiN coating for 3.5xD through or blind hole threading in steel and cast steel, stainless steel and wrought or cast aluminium.
Product Specifications
| Connection Diameter (Inch) | 0.2756" |
| Overall Length (Inch) | 3.1496" |
| Clamping Width (mm) | 5.5mm |
| Thread Diameter (mm) | 6.35mm |
| No of Flutes | 5 |
| Usable Length (mm) | 30mm |
| Clamping Length | 8 |
| Thread Diameter Size | 1/4 |
| Threading Length (mm) | 15mm |
| Material Code | HSS-E |
| Thread Tolerance Class | 2BX |
| Cutting Direction | Right Hand |
| Coating | TiN |
| Tap Chamfer Style | C 2-3.5 |
| Surface Color | Gold |
| Thread Form | UNC-Unified Coarse |
| Country of origin | Germany |
