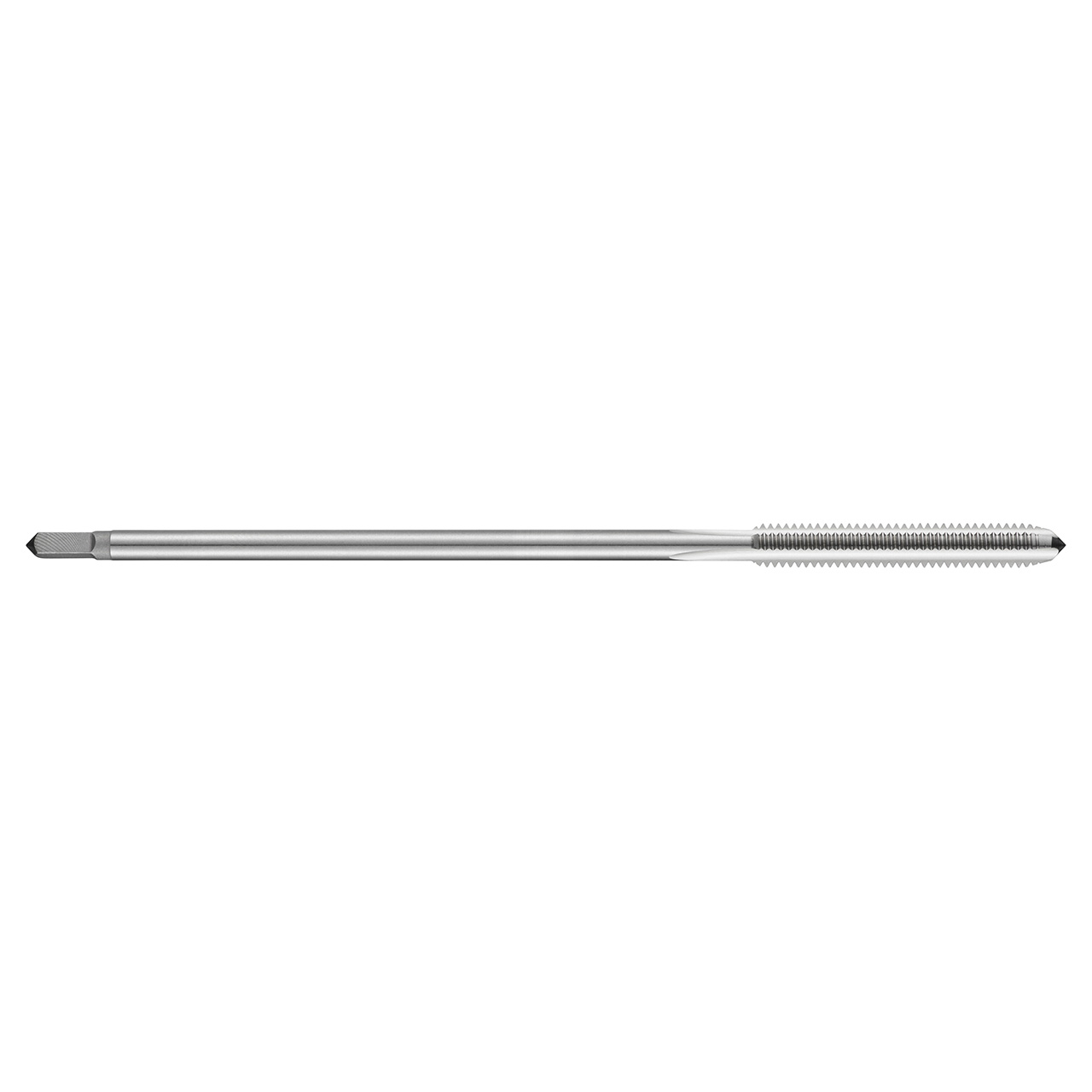

Straight flute nut tap NO3 with a 2-3xP semi-bottoming lead, for ISO-Metric thread M5 with 0.80mm pitch and 6H class of fit, dimensions according to DIN 357 standard with 3.5mm shank and 2.7mm square drive, cobalt based HSS-E with bright finish for 2xD through or blind hole threading in free machining steel.
Product Specifications
| Connection Diameter (Inch) | 0.1378" |
| Overall Length (Inch) | 3.937" |
| Clamping Width (mm) | 2.7mm |
| No of Flutes | 3 |
| Thread Pitch (mm) | 0.8mm |
| Clamping Length | 6 |
| Thread Diameter Size | 5 |
| Threading Length (mm) | 28mm |
| Material Code | HSS-E |
| Thread Tolerance Class | 6H |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Tap Chamfer Style | C 2-3 / D 18-20 |
| Surface Color | Bright Silver |
| Thread Form | M-Metric coarse |
| Country of origin | Germany |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
