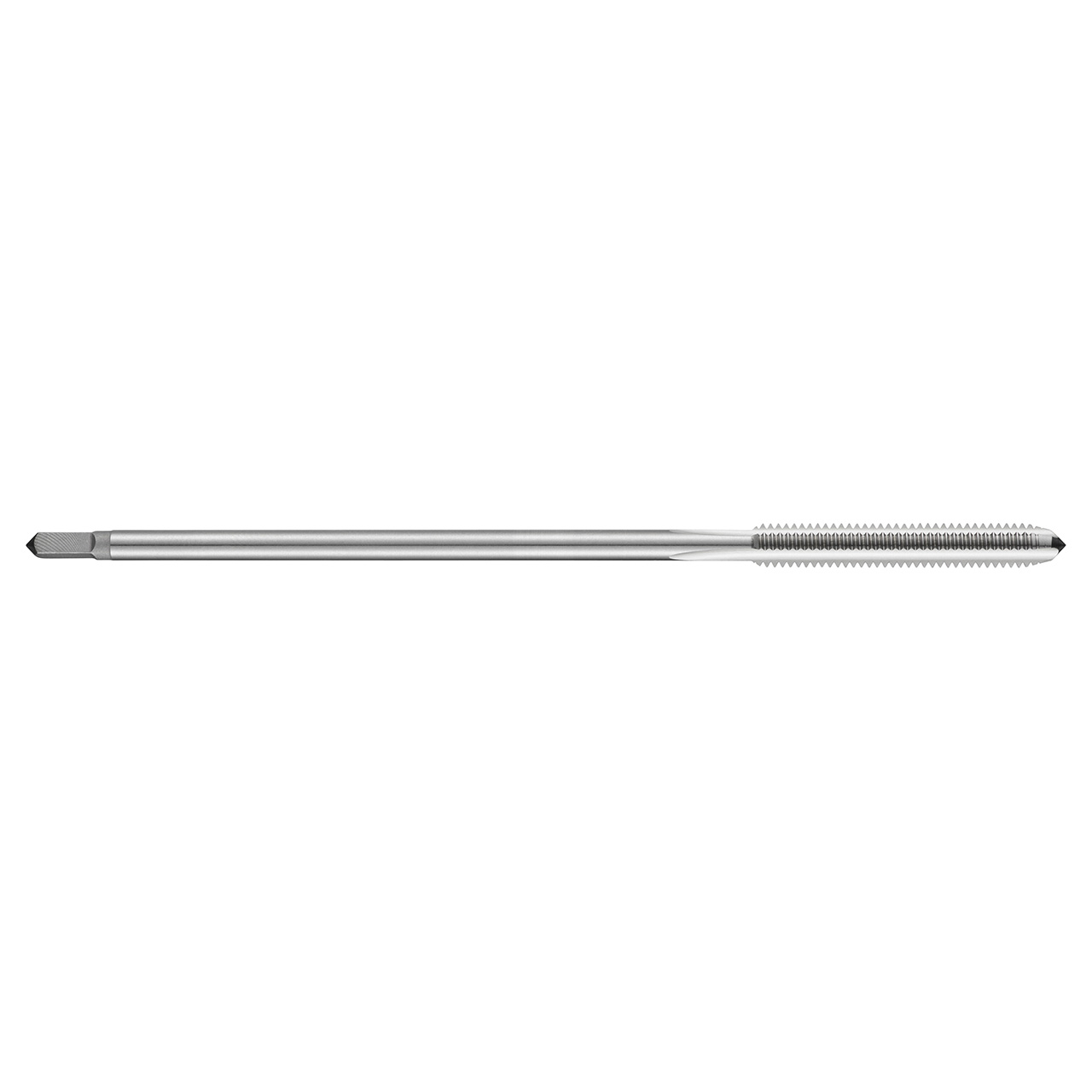

Straight flute nut tap NO3 with a 2-3xP semi-bottoming lead, for ISO-Metric thread M8 with 1.25mm pitch and 6H class of fit, dimensions according to DIN 357 standard with 6.0mm shank and 4.9mm square drive, cobalt based HSS-E with bright finish for 2xD through or blind hole threading in free machining steel.
Product Specifications
| Connection Diameter (Inch) | 0.2362" |
| Overall Length (Inch) | 4.9213" |
| Clamping Width (mm) | 4.9mm |
| No of Flutes | 3 |
| Thread Pitch (mm) | 1.25mm |
| Clamping Length | 8 |
| Thread Diameter Size | 8 |
| Threading Length (mm) | 40mm |
| Material Code | HSS-E |
| Thread Tolerance Class | 6H |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Tap Chamfer Style | C 2-3 / D 18-20 |
| Surface Color | Bright Silver |
| Thread Form | M-Metric coarse |
