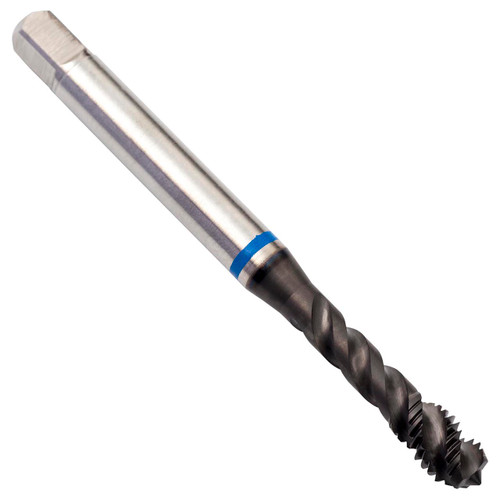

Spiral flute tap Blue Shark with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M16 with 2.00mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 12.0mm shank and 9.0mm square drive, powder metallurgical HSS-E with Super-B coating and 48° helix angle for 3xD blind hole threading in ferritic, martensitic and austenitic stainless steel.
Product Specifications
| Connection Diameter (Inch) | 0.4724" |
| Overall Length (Inch) | 4.3307" |
| Clamping Width (mm) | 9mm |
| No of Flutes | 4 |
| Flute Helix Angle | 48 |
| Thread Pitch (mm) | 2mm |
| Clamping Length | 12 |
| Thread Diameter Size | 16 |
| Threading Length (mm) | 20mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 6H |
| Cutting Direction | Right Hand |
| Coating | SUPER-B |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Black - Deep Purple |
| Thread Form | M-Metric coarse |
