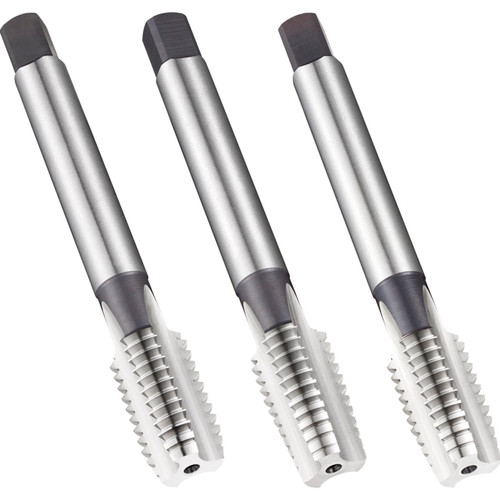

Dormer E5154-40NO6 | 0.124" Diameter x 1.8898" OAL 3 Flute Bright Coated Tap Set

$61.02
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15023505
UPC:
7320760154182
Weight:
0.71 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Set of straight flute hand taps NO6 for Unified National Coarse thread UNC 4 with 40 TPI and 2B class of fit, consisting of 1 tap with a 6-8xP taper lead, 1 tap with a 4-6xP plug lead and 1 tap with a 2-3xP semi-bottoming lead, dimensions according to ISO 529 standard with 3.15mm shank and 2.5mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining steel and copper or copper alloys.


Product Specifications
Connection Diameter (Inch)0.124"
Overall Length (Inch)1.8898"
Clamping Width (mm)2.5mm
Thread Diameter (mm)2.845mm
No of Flutes3
Usable Length (mm)12.5mm
Clamping Length5
Thread Diameter Size4
Threading Length (mm)12.5mm
Material CodeHSS
Thread Tolerance Class2B
Cutting DirectionRight Hand
CoatingBright
Surface ColorBright Silver
Thread FormUNC-Unified Coarse
