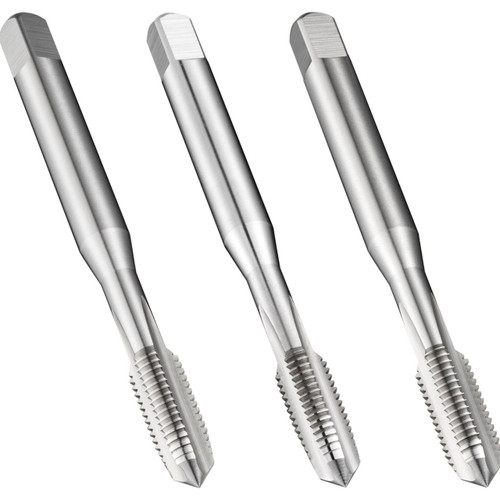

Dormer E5243/4NO6 | 0.5512" Diameter x 4.4094" OAL 4 Flute Bright Coated Tap Set

$175.50
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15023444
UPC:
7320760153352
Weight:
16.26 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Set of straight flute hand taps NO6 for Unified National Fine thread UNF 3/4" with 16 TPI and 2B class of fit, consisting of 1 tap with a 6-8xP taper lead, 1 tap with a 4-6xP plug lead and 1 tap with a 2-3xP semi-bottoming lead, dimensions according to ISO 529 standard with 14.0mm shank and 11.2mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and copper or copper alloys.


Product Specifications
Connection Diameter (Inch)0.5512"
Overall Length (Inch)4.4094"
Clamping Width (mm)11.2mm
Thread Diameter (mm)19.05mm
No of Flutes4
Clamping Length14
Thread Diameter Size3/4
Threading Length (mm)29mm
Material CodeHSS
Thread Tolerance Class2B
Cutting DirectionRight Hand
CoatingBright
Surface ColorBright Silver
Thread FormUNF-Unified Fine
