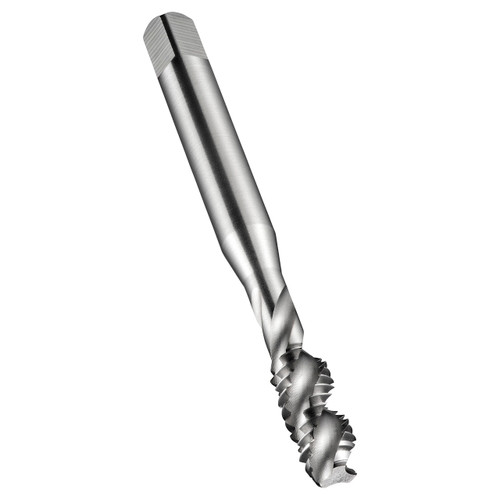

Spiral flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for British Standard Whitworth thread BSW 5/8" with 11 TPI and Medium class of fit, dimensions according to ISO 529 standard with 12.5mm shank and 10.0mm square drive, HSS with bright finish with steam tempering and 40° helix angle for 2xD blind hole threading in general purpose applications.
Product Specifications
| Connection Diameter (Inch) | 0.4921" |
| Overall Length (Inch) | 4.0157" |
| Clamping Width (mm) | 10mm |
| Thread Diameter (mm) | 15.875mm |
| No of Flutes | 3 |
| Flute Helix Angle | 40 |
| Thread Diameter Size | 5/8 |
| Threading Length (mm) | 24mm |
| Material Code | HSS |
| Thread Tolerance Class | Medium |
| Cutting Direction | Right Hand |
| Coating | Bright/ST |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Bright & Blue |
| Thread Form | BSW-British standard Whitworth |
