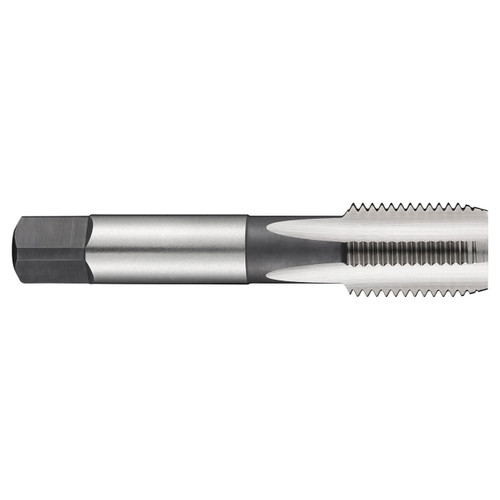

Straight flute hand tap NO3 with a 2-3xP semi-bottoming lead, for British Standard Pipe thread G 2" with 11 TPI and Normal class of fit, dimensions according to ISO 2284 standard with 40.0mm shank and 31.5mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel.
Product Specifications
| Connection Diameter (Inch) | 1.5748" |
| Overall Length (Inch) | 5.5118" |
| Clamping Width (mm) | 31.5mm |
| Thread Diameter (mm) | 59.614mm |
| No of Flutes | 6 |
| Clamping Length | 34 |
| Thread Diameter Size | 2" |
| Threading Length (mm) | 41mm |
| Material Code | HSS |
| Thread Tolerance Class | Normal |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Surface Color | Bright Silver |
| Thread Form | G-British standard pipe fastening-G series |
