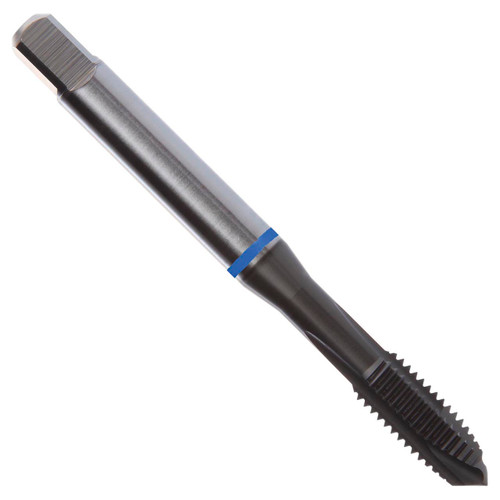

Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric thread M24 with 3.00mm pitch and 6H class of fit with D8 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.7600" shank and 0.5670" square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in stainless steel.
Product Specifications
| Connection Diameter (Inch) | 0.76" |
| Overall Length (Inch) | 6.2992" |
| No of Flutes | 4 |
| Thread Pitch (mm) | 3mm |
| Clamping Length | 19 |
| Thread Diameter Size | 24 |
| Threading Length (mm) | 38mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 6H |
| Cutting Direction | Right Hand |
| Coating | SUPER-B |
| Tap Chamfer Style | B 3.5-5 |
| Surface Color | Black - Deep Purple |
| Thread Form | M-Metric coarse |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
