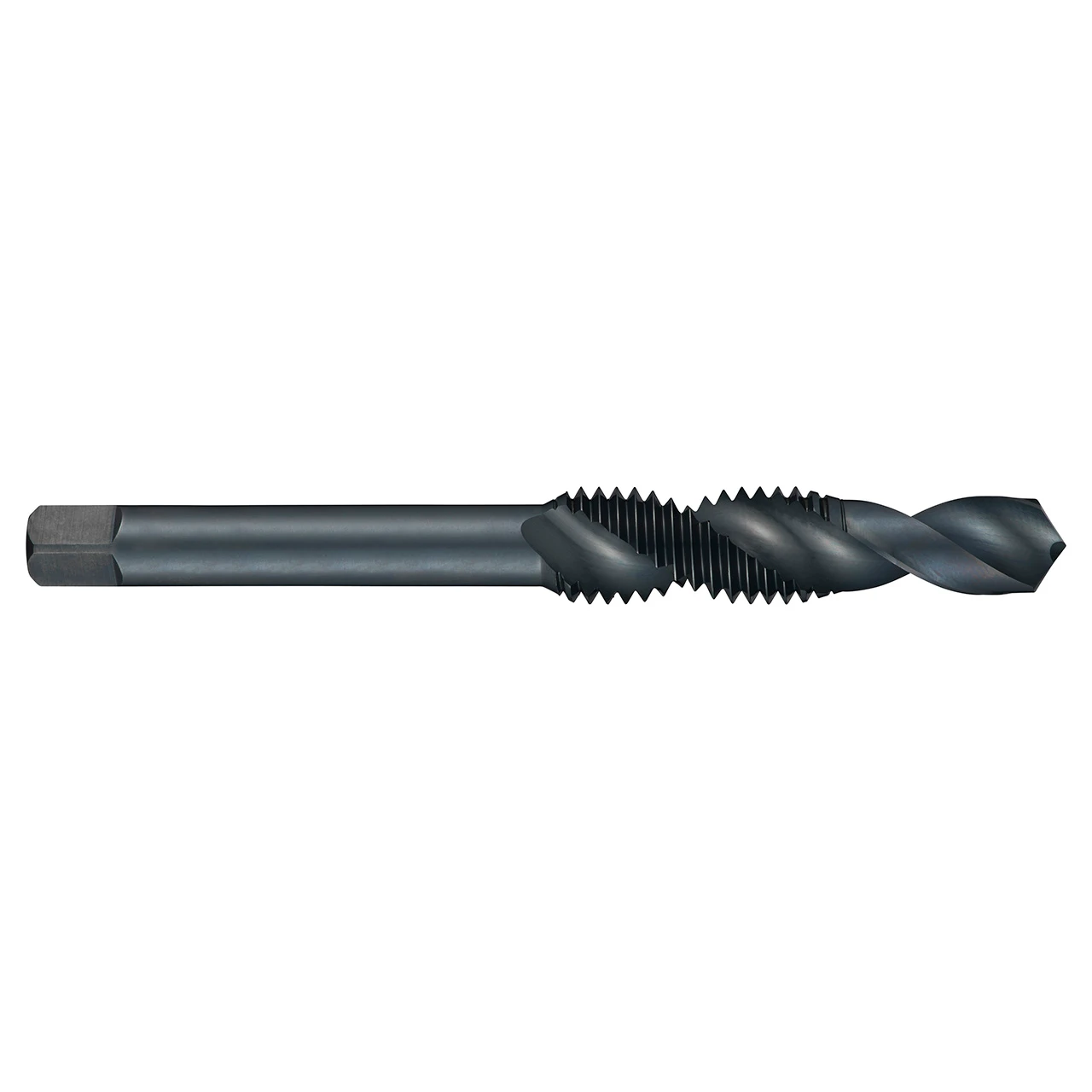

Combination drill-tap with a 30° spiral flute, for Unified National Coarse thread UNC 1/2" with 13 TPI and 2B class of fit, dimensions according to DORMER-DIN standard with 9.0mm shank and 7.1mm square drive, HSS with steam tempered surface finish and 30° helix angle for 1.5xD through hole threading in free machining steel.
Product Specifications
| Connection Diameter (Inch) | 0.3543" |
| Overall Length (Inch) | 4.4882" |
| Clamping Width (mm) | 7.1mm |
| Thread Diameter (mm) | 10.8mm |
| No of Flutes | 2 |
| Flute Helix Angle | 30 |
| Thread Diameter Size | 1/2 |
| Threading Length (mm) | 29mm |
| Material Code | HSS |
| Thread Tolerance Class | 2B |
| Cutting Direction | Right Hand |
| Coating | Steam Tempered |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Black |
| Thread Form | UNC-Unified Coarse |
