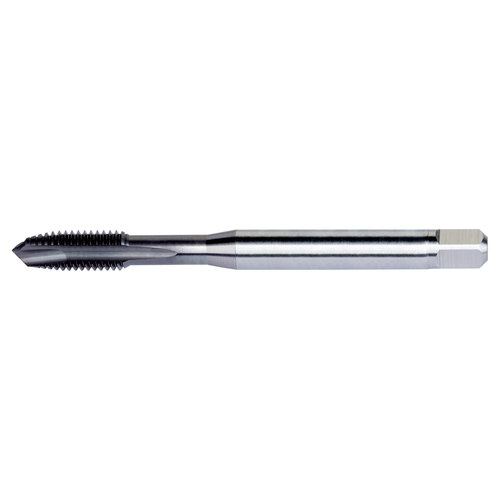

Dormer E697UNC6X32 | 6" Thread Diameter Size x 0.433" Thread Length TiCN Coated HSS-E-PM Spiral Point Tap

$35.85 $17.20
(You save $18.65)
Brand:
Dormer
Thread Diameter Size:
6"
Threads Per Inch (TPI):
32 TPI
Material:
HSS-E-PM
Finish/Coating:
TiCN
interval quantity:
1
SKU:
18020291
UPC:
Weight:
0.02 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Dormer E697UNC6X32 | 6" Thread Diameter Size x 0.433" Thread Length TiCN Coated HSS-E-PM Spiral Point Tap

Thread size UNC 0.236 inch - 32 TPI, with thread tolerance class 93707, H2 pitch diameter limits, and maximum threading depth 0.59 inches.


Product Specifications
Manufacturer Part NumberE697UNC6X32
Connection Diameter (Decimal Inch)0.141"
Thread Diameter Size6"
Overall Length (Decimal Inch)2.205"
Threads Per Inch (TPI)32 TPI
Premachined Hole Diameter (mm)2.85mm
Usable Length (Decimal Inch)0.787"
Thread Length (Decimal Inch)0.433"
Clamping Length (Decimal Inch)0.190"
Clamping Width (Decimal Inch)0.108"
Premachined Hole Diameter (Decimal Inch)0.112"
Tolerance limitH2
Number of Flutes3
Tap Chamfer StyleB 3.5 - 5
Thread FormUNC - Unified Coarse
Flute GeometrySpiral Point Geometry
Cutting DirectionRight Hand
Basic Standard GroupDIN/ANSI
MaterialHSS-E-PM
CoatingTiCN
Product TypeSpiral Point Tap
Country of OriginBrazil
