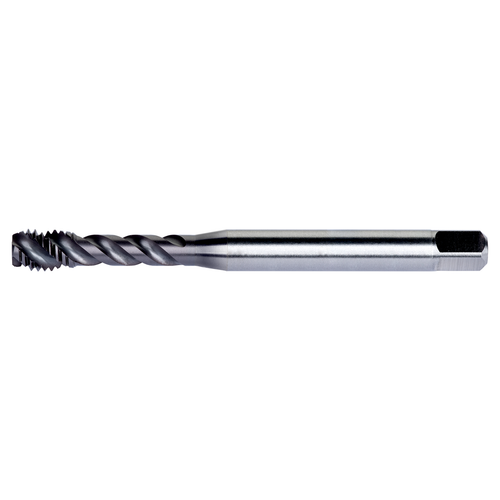

Thread size UNF 0.375 inch - 24 TPI, with thread tolerance class 93707, H4 pitch diameter limits, and maximum threading depth 0.9375 inches.
Product Specifications
| Manufacturer Part Number | E698UNF3/8 |
| Connection Diameter (Decimal Inch) | 0.381" |
| Thread Diameter Size | 3/8" |
| Overall Length (Decimal Inch) | 3.937" |
| Threads Per Inch (TPI) | 24 TPI |
| Premachined Hole Diameter (mm) | 8.50mm |
| Usable Length (Decimal Inch) | 1.476" |
| Thread Length (Decimal Inch) | 0.591" |
| Clamping Length (Decimal Inch) | 0.440" |
| Clamping Width (Decimal Inch) | 0.284" |
| Premachined Hole Diameter (Decimal Inch) | 0.335" |
| Tolerance limit | H4 |
| Number of Flutes | 3 |
| Tap Chamfer Style | C 2 - 3 |
| Thread Form | UNF - Unified Fine |
| Flute Geometry | Spiral Flute Geometry |
| Flute Helix Angle (Degree) | 48 Degree |
| Cutting Direction | Right Hand |
| Basic Standard Group | DIN/ANSI |
| Material | HSS-E-PM |
| Coating | TiCN |
| Product Type | Spiral Flute Tap |
| Country of Origin | Brazil |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
Thread Diameter Size:
3/8"
Threads Per Inch (TPI):
24 TPI
Material:
HSS-E-PM
Finish/Coating:
TiCN
interval quantity:
1
