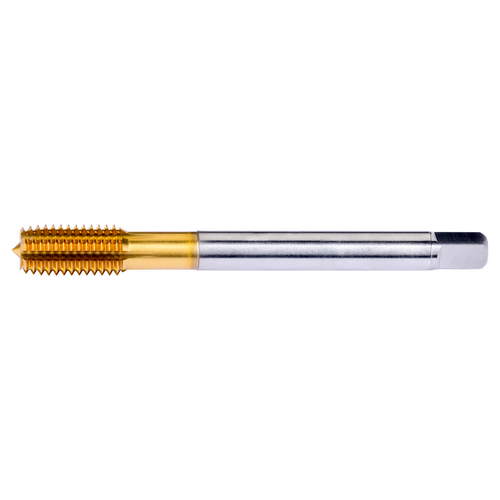

Thread forming tap with lube grooves and chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M16 with 20 mm pitch and 6HX class of fit, dimensions according to DIN/ANSI standard with 0.480" shank and 0.3598" square drive, cobalt based HSS-E with TiN coating for 3.5xD through or blind hole threading in steel and cast steel, stainless steel and wrought or cast aluminum.
Product Specifications
| Manufacturer Part Number | E894M16 |
| Connection Diameter (mm) | 12.19mm |
| Overall length (mm) | 110.00mm |
| Thread Diameter Size | 16.000" |
| Thread Length (mm) | 25.00mm |
| Thread Pitch (mm) | 2.00mm |
| Overall Length (Decimal Inch) | 4.331" |
| Material | HSS-E |
| Coating | TiN |
| Cutting Direction | Right Hand |
| Product Type | Thread Forming Tap |
| Country of Origin | Germany |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Related Products
Brand:
Dormer
Thread Size (Decimal Inch):
16.0000"
Overall Length (Inch):
4-21/64"
Overall Length (Decimal Inch):
4.3310"
Overall length (mm):
110.00mm
Number of Flutes:
6
Finish/Coating:
TiN
Material:
HSS-E
Thread Form:
M - Metric coarse
