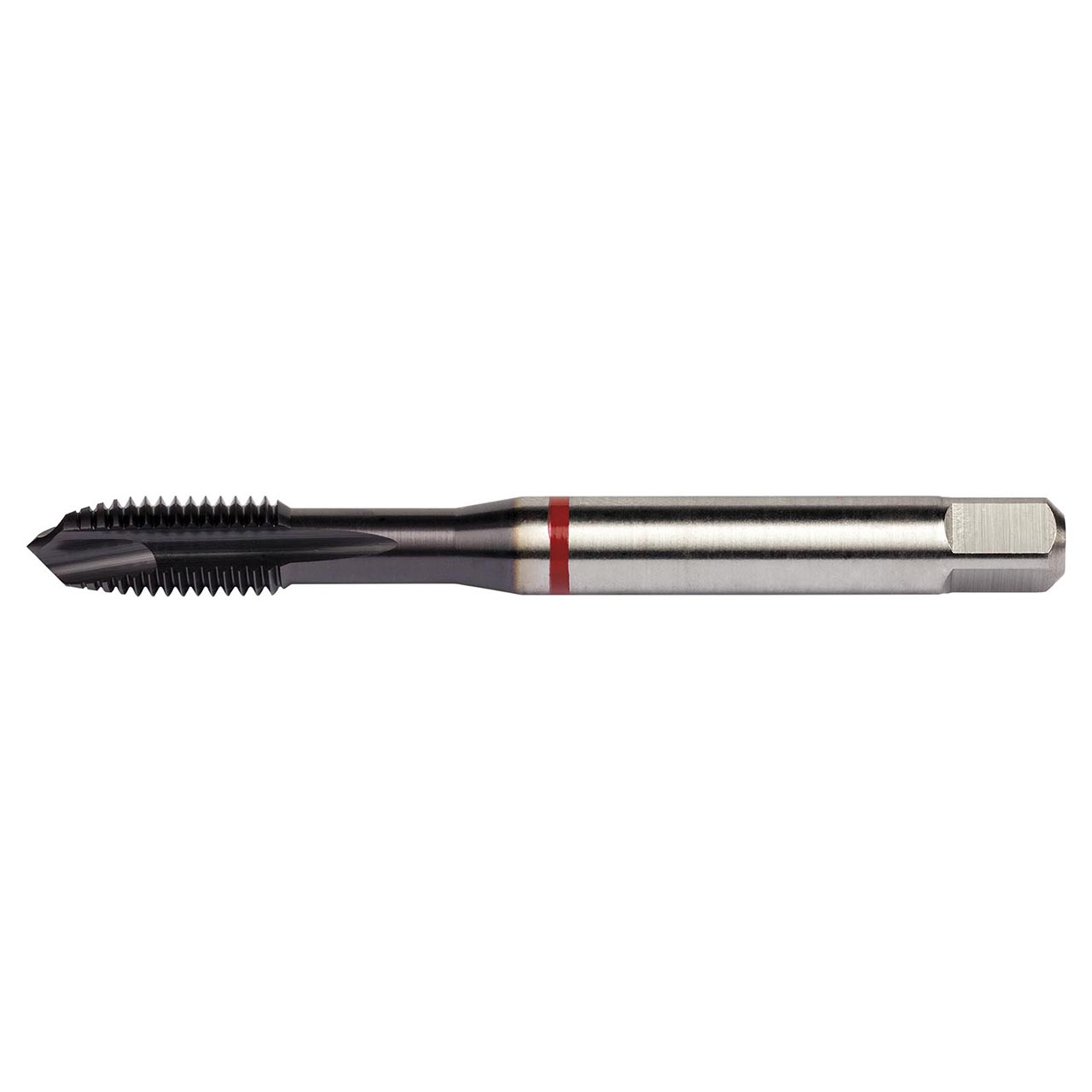

Spiral point tap Red Shark with chamfer form B with a 3.5-5xP plug lead, for Unified National Fine thread UNF 1" with 12 TPI and 2B class of fit with H6 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.8000" shank and 0.5970" square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2.5xD through hole threading in plain carbon, alloy and tool steel.
Product Specifications
| Connection Diameter (Inch) | 0.8" |
| No of Flutes | 4 |
| Thread Diameter Size | 1" |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 2B |
| Threading Length (Inch) | 1.063" |
| Cutting Direction | Right Hand |
| Coating | TiAlN/Top |
| Tap Chamfer Style | B 3.5-5 |
| Surface Color | Black - Deep Purple |
| Thread Form | UNF-Unified Fine |
