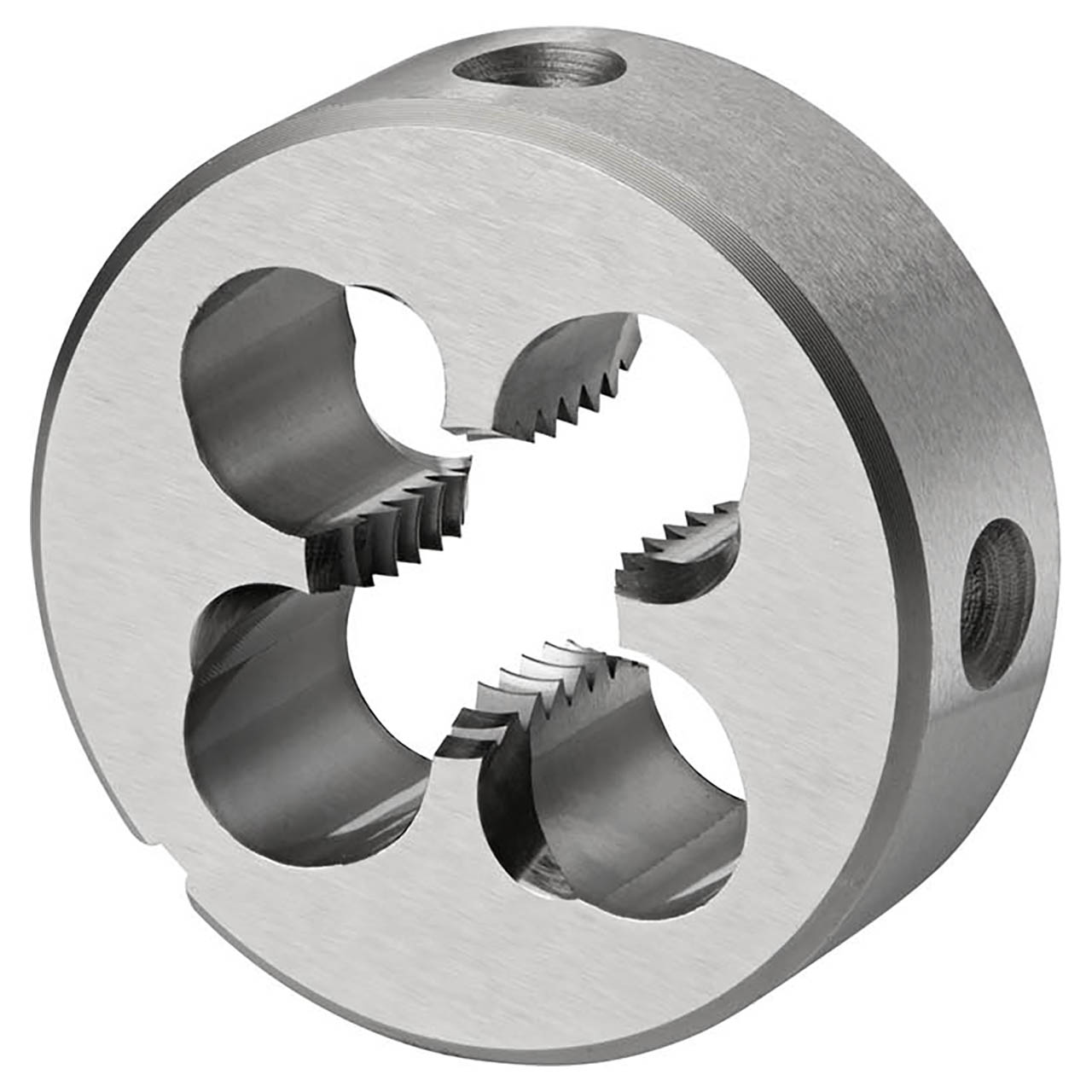

Solid round die with a gun nose, for British Standard Pipe thread G 3/4" with 14 TPI and class A tolerance, dimensions according to ISO 2568 standard with 55mm outside diameter and 16mm thickness, HSS with lapped surface finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron.
Product Specifications
| Body Diameter (Inch) | 2.1654" |
| Overall Length (Inch) | 0.6299" |
| Thread Diameter (mm) | 26.44mm |
| Thread Diameter Size | 3/4 |
| Material Code | HSS |
| Thread Tolerance Class | CLASS A |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Surface Color | Bright Silver |
| Thread Form | G-British standard pipe fastening-G series |
