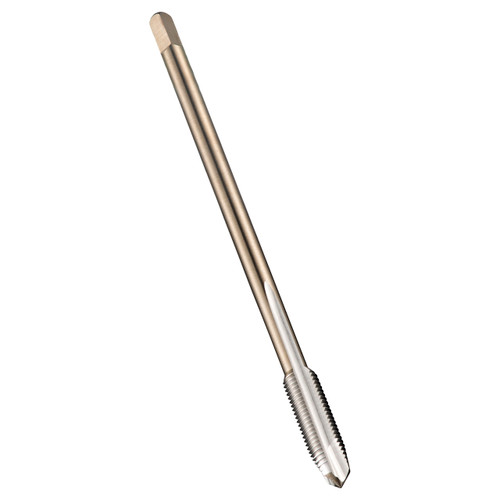

Dormer EP10M14X1.5 | 0.4331" Diameter x 3.937" OAL 3 Flute Bright Coated Spiral Point Tap

$67.50
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15023162
UPC:
7320760137475
Weight:
2.58 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric Fine thread M14 with 1.50mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 11.0mm shank and 9.0mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining, plain carbon and alloy steel and wrought or cast aluminium.


Product Specifications
Connection Diameter (Inch)0.4331"
Overall Length (Inch)3.937"
Clamping Width (mm)9mm
No of Flutes3
Thread Pitch (mm)1.5mm
Clamping Length12
Thread Diameter Size14
Threading Length (mm)21mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingBright
Tap Chamfer StyleB 3.5-5
Surface ColorBright Silver
Thread FormMF-Metric fine
