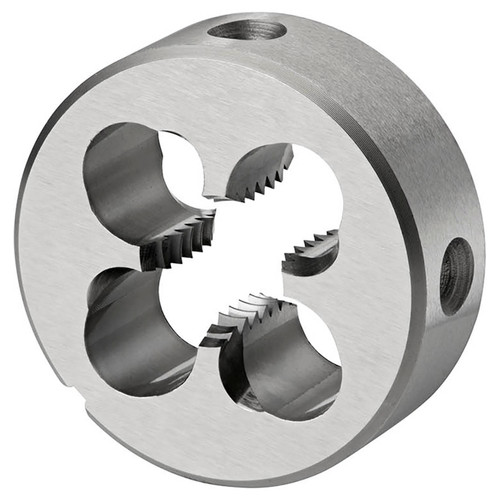

Solid round die with a gun nose, for left hand ISO-Metric thread M16 with 2.00mm pitch and 6g class of fit, dimensions according to ISO 2568 standard with 45mm outside diameter and 18mm thickness, HSS with bright finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron.
Product Specifications
| Body Diameter (Inch) | 1.7717" |
| Overall Length (Inch) | 0.7087" |
| Thread Diameter (mm) | 16mm |
| Thread Pitch (mm) | 2mm |
| Thread Diameter Size | 16 |
| Material Code | HSS |
| Thread Tolerance Class | 6g |
| Cutting Direction | Left Hand |
| Coating | Bright |
| Surface Color | Bright Silver |
| Thread Form | M-Metric coarse |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
