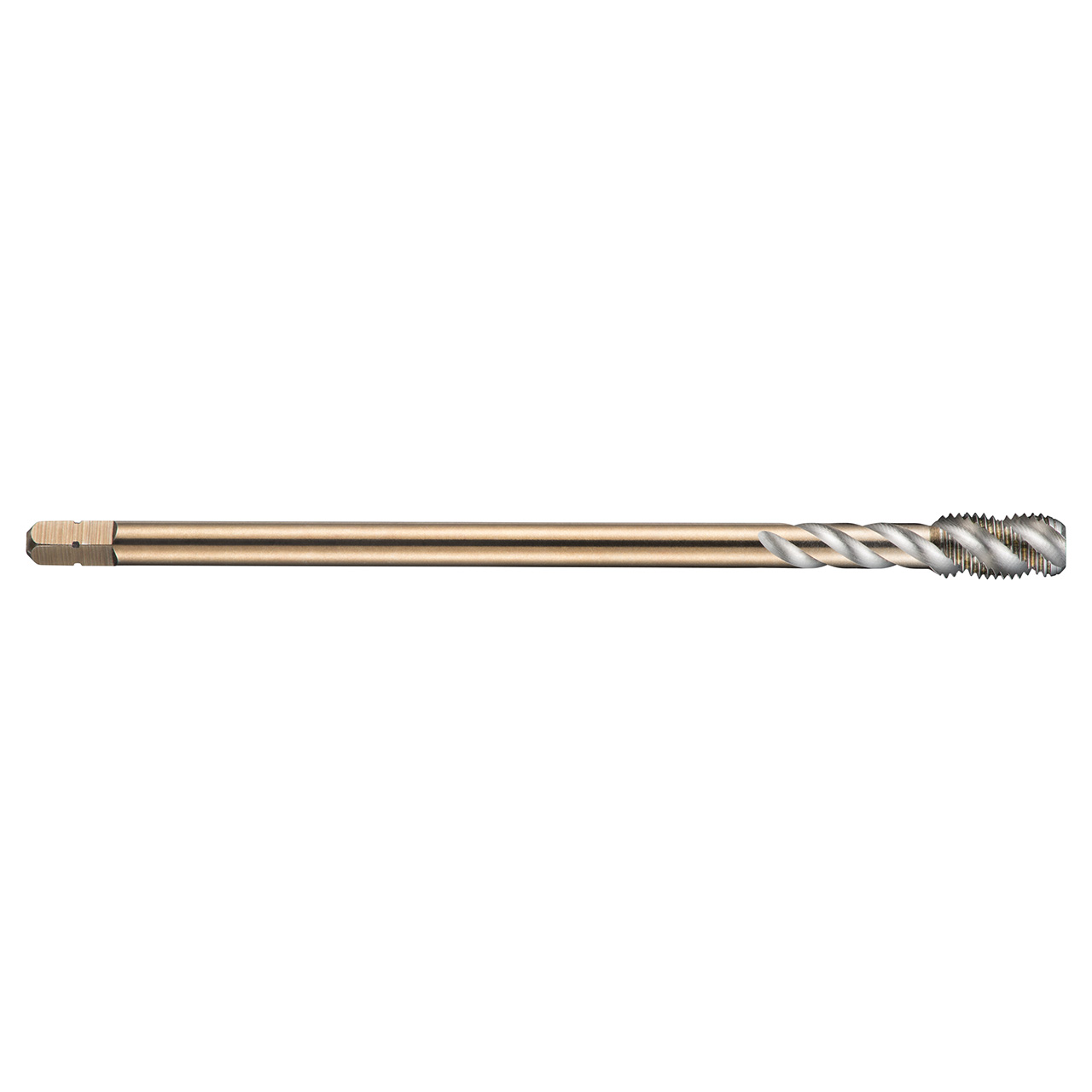

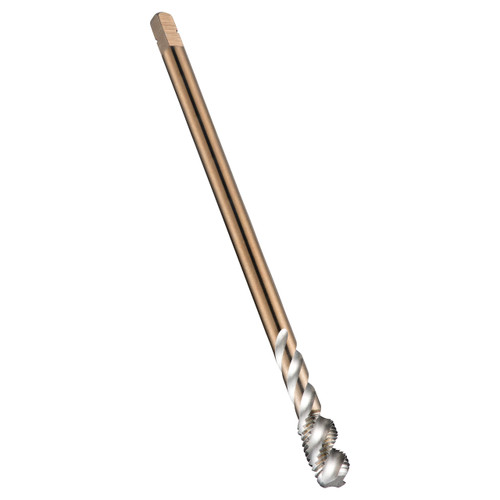

Dormer EX10M12X1.5 | 0.3543" Diameter x 3.937" OAL 3 Flute Bright Coated Spiral Flute Tap

$52.65
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15023294
Weight:
1.74 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Spiral flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric Fine thread M12 with 1.50mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 9.0mm shank and 7.0mm square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining and plain carbon steel and wrought or cast aluminium.


Product Specifications
Connection Diameter (Inch)0.3543"
Overall Length (Inch)3.937"
Clamping Width (mm)7mm
No of Flutes3
Flute Helix Angle45
Thread Pitch (mm)1.5mm
Clamping Length10
Thread Diameter Size12
Threading Length (mm)15mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingBright
Tap Chamfer StyleC 2-3
Surface ColorBright Silver
Thread FormMF-Metric fine
