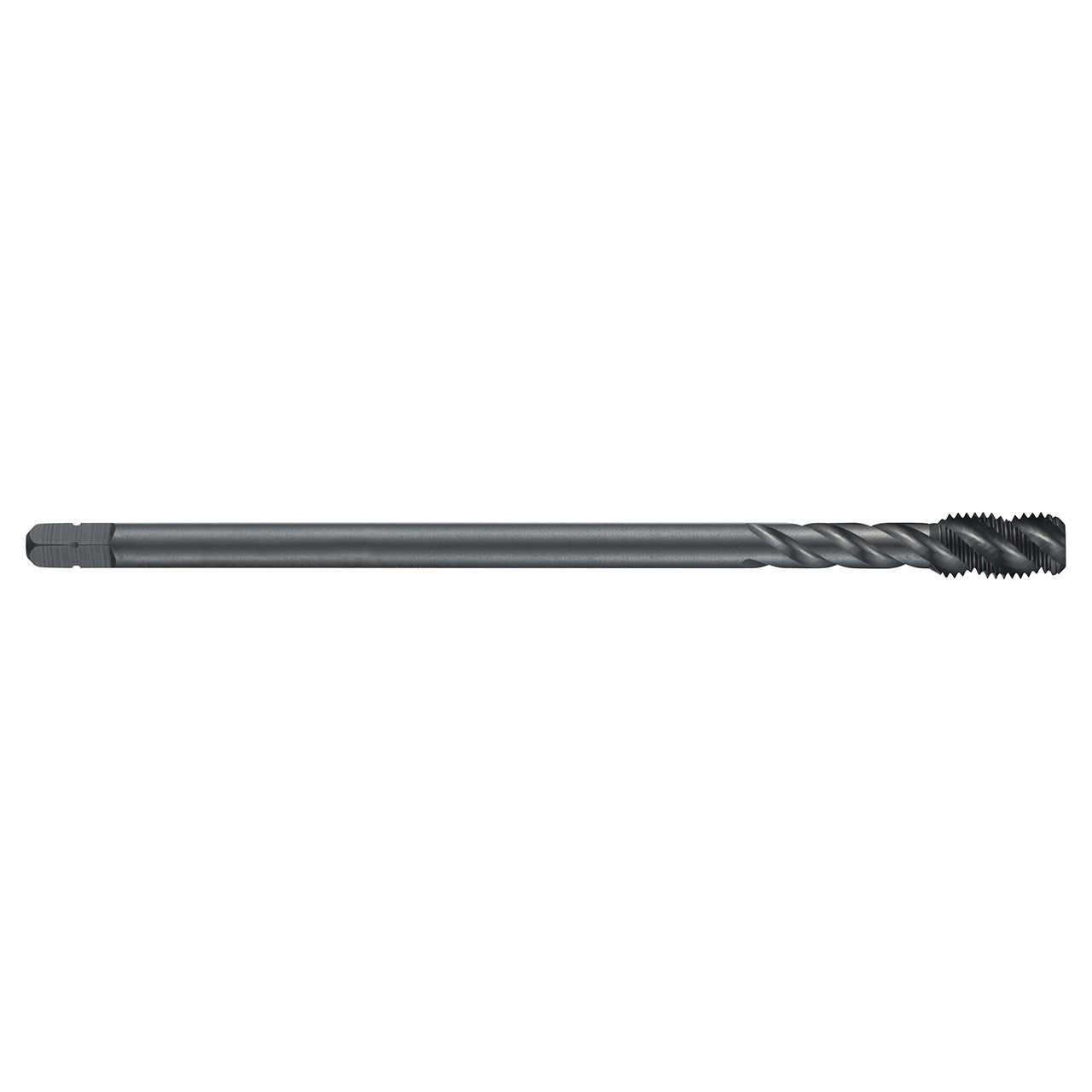

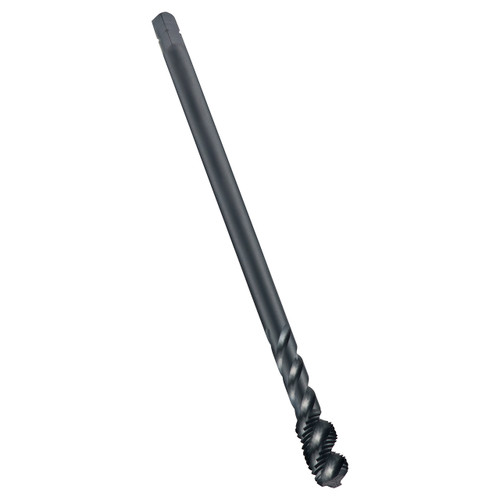

Dormer EX11M12X1.0 | 0.3543" Diameter x 3.937" OAL 3 Flute Steam Tempered Coated Spiral Flute Tap

$55.35
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15023322
UPC:
7320760150047
Weight:
1.76 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Spiral flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric Fine thread M12 with 1.00mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 9.0mm shank and 7.0mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications.


Product Specifications
Connection Diameter (Inch)0.3543"
Overall Length (Inch)3.937"
Clamping Width (mm)7mm
No of Flutes3
Flute Helix Angle45
Thread Pitch (mm)1mm
Clamping Length10
Thread Diameter Size12
Threading Length (mm)15mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingSteam Tempered
Tap Chamfer StyleC 2-3
Surface ColorBlack
Thread FormMF-Metric fine
