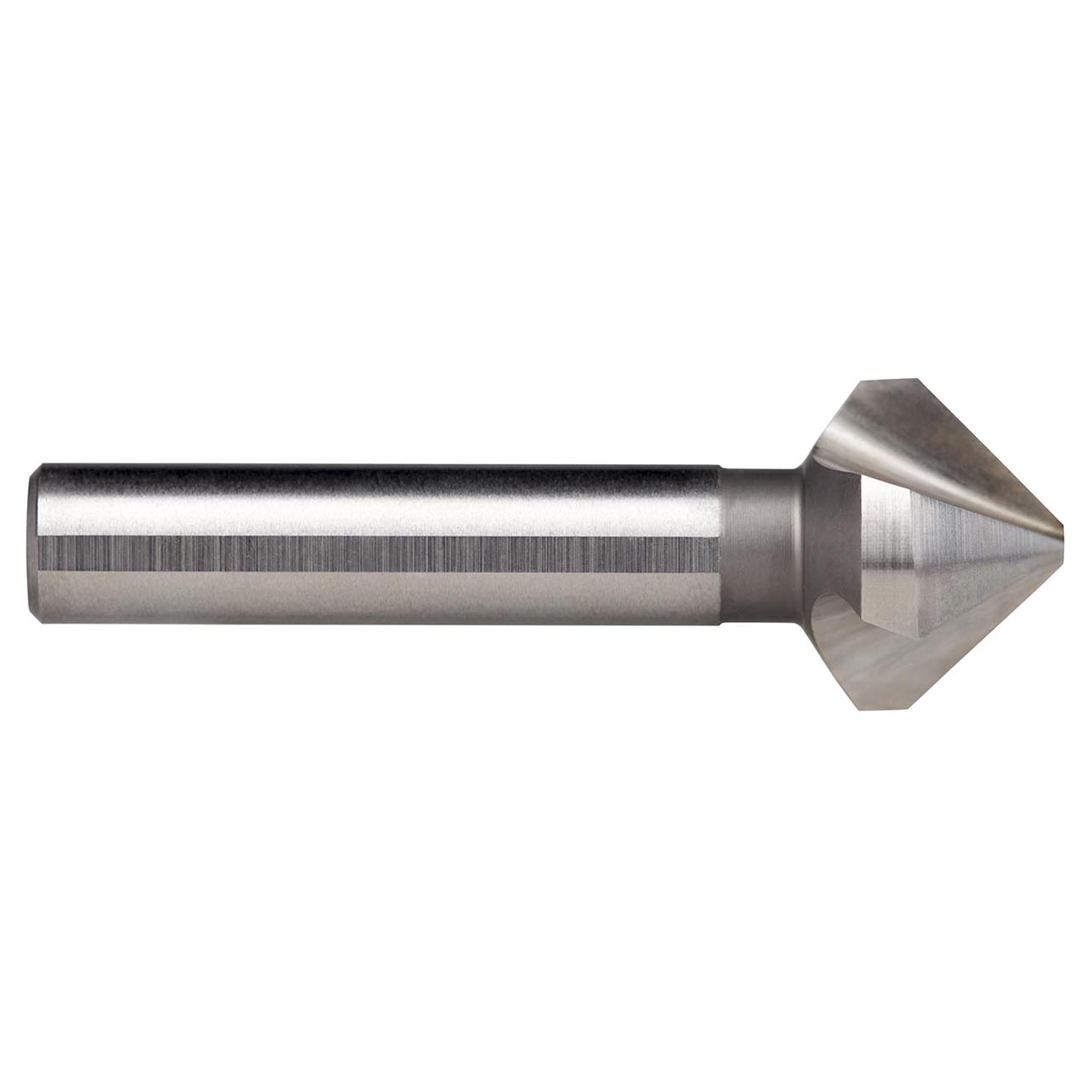

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 20.50mm with an overall length of 63mm and a head length of 12.9mm and 10mm tri-flat shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 3.50mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, grey cast-iron, copper or copper alloys.
Product Specifications
| EDP Number | 47147785 |
| Flute Count | 3 |
| Connection Diameter (Inch) | 0.3937" |
| Overall Length (Inch) | 2.4803" |
| Point Angle | 90 |
| Material Code | HSS |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Surface Color | Bright Silver |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
Material:
HSS
Finish/Coating:
Bright
Number of Flutes:
3
