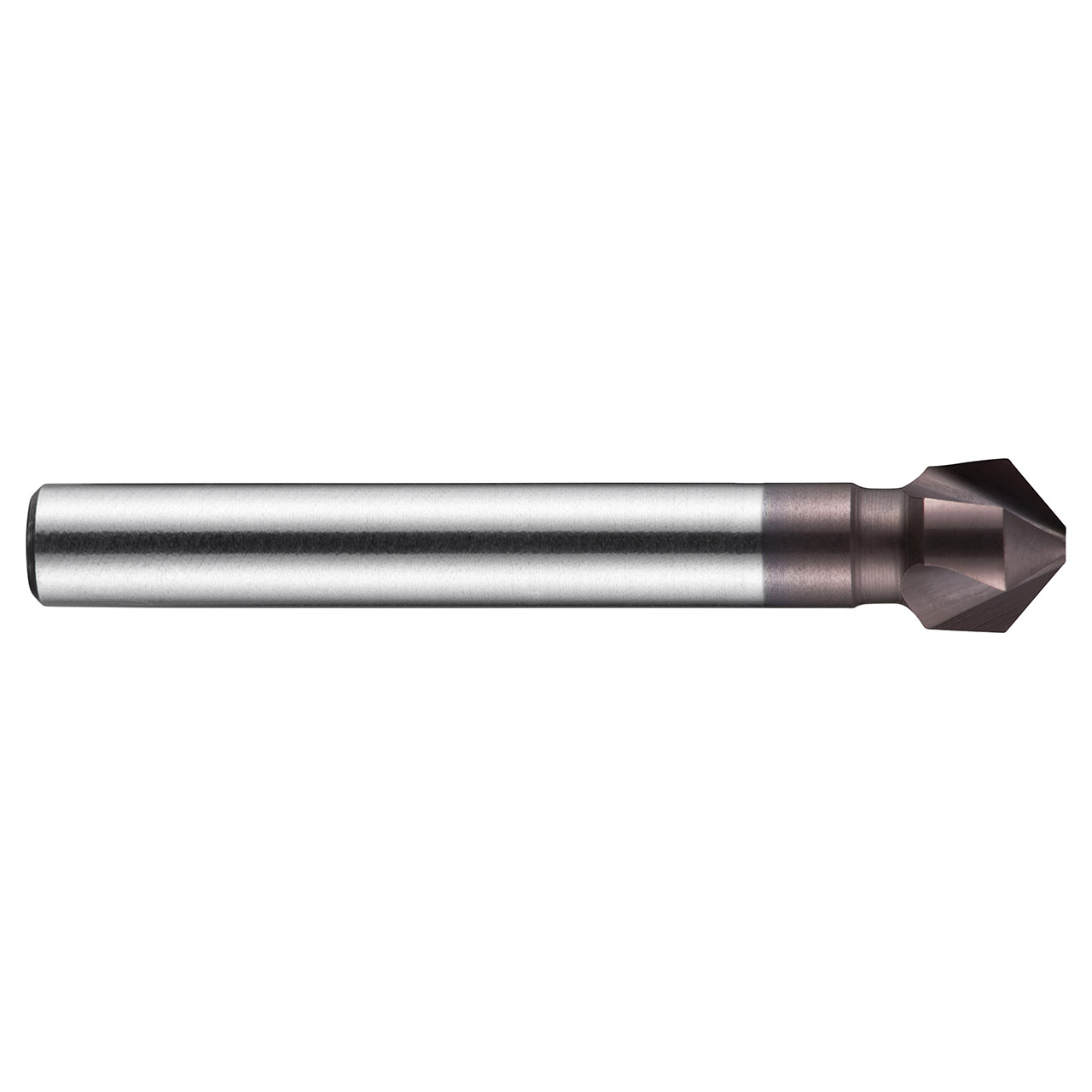

Countersink with 3-flutes, 100° chamfering angle, maximum diameter 16.50mm with an overall length of 56mm and a head length of 9mm and 10mm straight shank, according to DIN 335 C standard produce a conical seat for BS standard countersunk-head screws and aviation fasteners with a minium hole diameter of 3.20mm, HSS with standard TiAlN coating for machining steel and cast steel, grey, malleable, ductile and compacted graphite cast-iron, cast aluminium and copper or copper alloys.
Product Specifications
| EDP Number | 0372579 |
| Flute Count | 3 |
| Connection Diameter (Inch) | 0.3937" |
| Overall Length (Inch) | 2.2047" |
| Point Angle | 100 |
| Material Code | HSS |
| Cutting Direction | Right Hand |
| Coating | TiAlN |
| Surface Color | Black-Deep Purple |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
Material:
HSS
Finish/Coating:
TiAlN
Number of Flutes:
3
