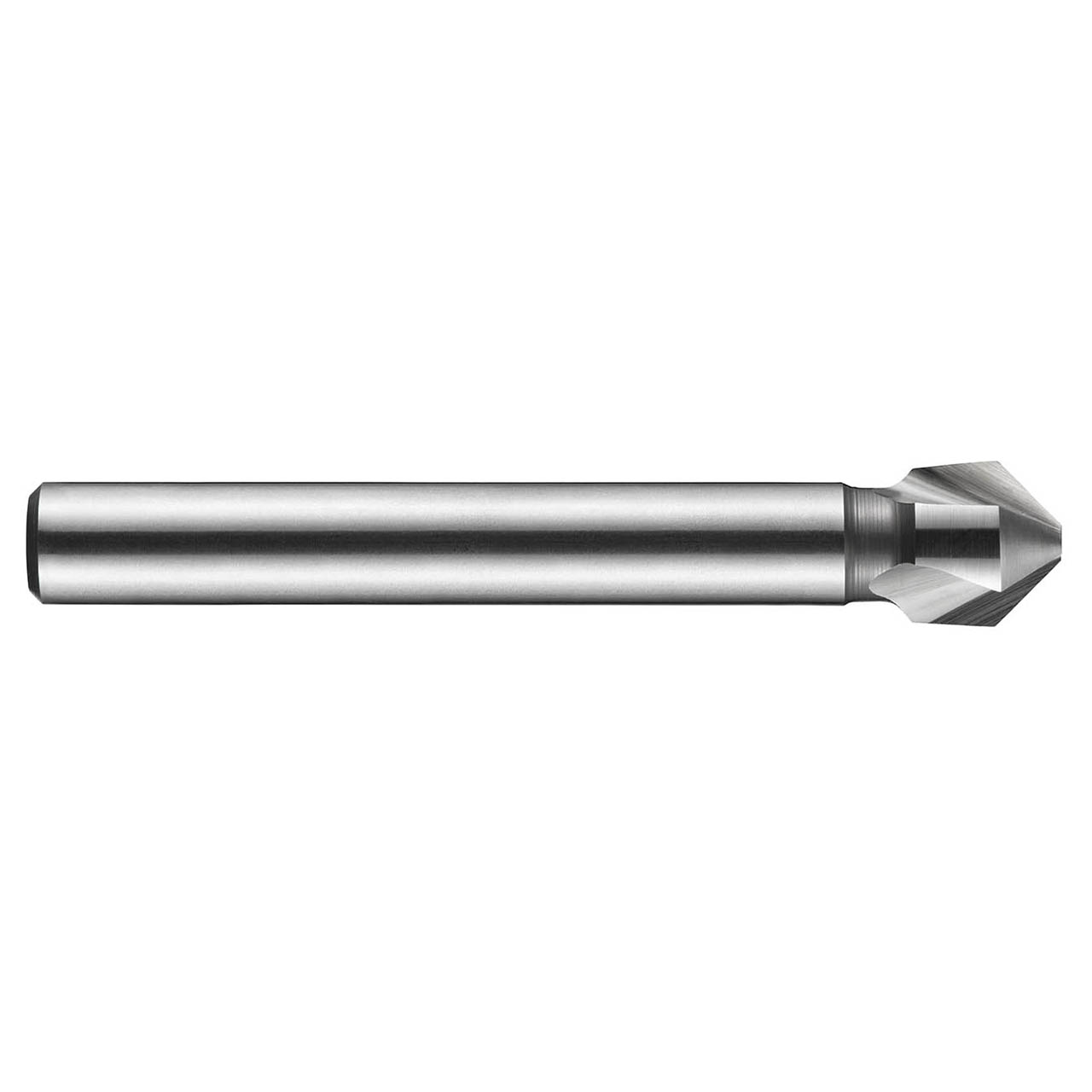

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 12.40mm with an overall length of 56mm and a head length of 8mm and 8mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 2.80mm, solid carbide with standard bright finish for machining free machining, plain carbon, alloy and tool steel, ferritic stainless steel, grey, malleable, ductile, austenitic or austempered ductile and compacted graphite cast-iron, wrought and cast aluminium, copper or copper alloys and polymers, titanium or titanium alloys, chilled, hardened cast-iron.
| EDP Number | 0128732 |
| Flute Count | 3 |
| Connection Diameter (Inch) | 0.315" |
| Overall Length (Inch) | 2.2047" |
| Point Angle | 90 |
| Material Code | HM |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Surface Color | Bright Silver |
