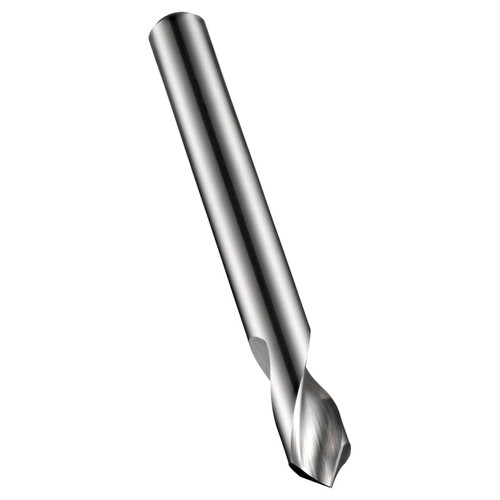

Dormer A1228.0X120 | 0.315" Diameter x 3.1102" OAL Bright Coated Spotting Drill
$58.40
$27.73
Dormer
Dormer
Part of Dormer's range of solid carbide drills, R123 spotting drills have a precision 90 Degree point angle for accurate chamfering to accommodate standard screws, and also reduces the amount of force needed to machine the workpiece and helps to self-center the drill. The bright finish assures a clean result by preventing workpiece material from sticking to the cutting edges of the tool. R123 spotting drills are very versatile, being available in a wide range of sizes to suit most needs, and manufactured from premium carbide so they are suitable for drilling many different materials, including stainless steels, steels and aluminium.
| EDP Number | 0114759 |
| Usable Length | 1 |
| Connection Diameter (Inch) | 0.315" |
| Cutting Diameter (Inch) | 0.315" |
| Overall Length (Inch) | 3.1102" |
| Point Angle | 90 |
| Material Code | HM |
| Drill Length | Short |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Surface Color | Bright Silver |
| Country of origin | Brazil |
