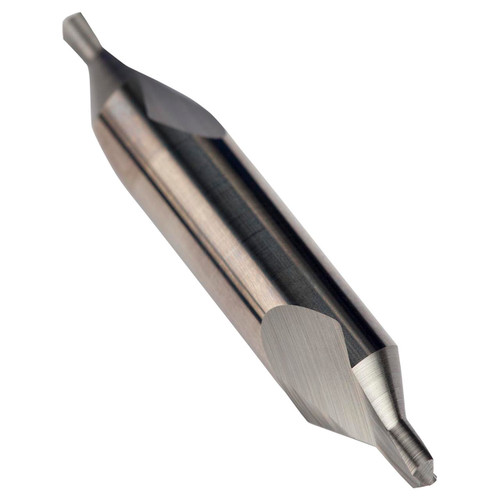

R200 solid carbide centre drills have a 180° pilot and 60° cone and are recommended for creating center holes in shafts for secure holding. Suitable for use with all CNC machines, the drills are very versatile and are able to drill many materials including steels, stainless steels and aluminium, being manufactured from premium carbide. The tools come with a bright finish to ensure clean, accurate results by stopping workpiece material from sticking to the cutting edges of the tool. For further improvements in productivity and increased economy, R200 center drills are double-ended so twice the productivity in a single tool.
| EDP Number | 47191825 |
| Usable Length | 1 |
| Connection Diameter (Inch) | 0.124" |
| Cutting Diameter (Inch) | 0.0492" |
| Overall Length (Inch) | 1.2205" |
| Point Angle | 118 |
| Material Code | HM |
| Drill Length | Short |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Surface Color | Bright Silver |
