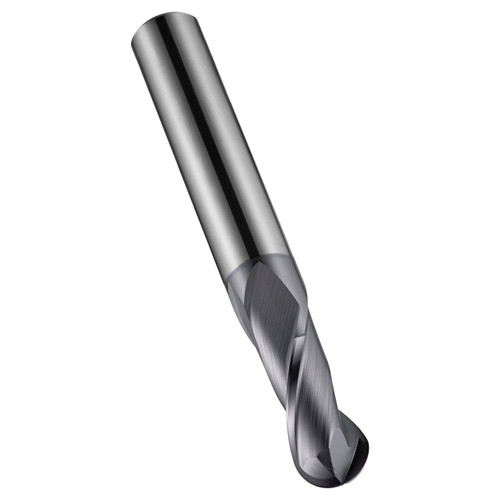

Dormer S5012.0 | 0.0787" Diameter x 1.4961" OAL 2 Flute X-CEED Coated Ball End Mill

$72.00
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25140001
Weight:
0.30 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

S501 2-flute milling cutters from Dormer have ball nose geometry for high performance contouring of complex surfaces. The X-CEED coating improves performance when milling difficult to machine materials and extends the tool life. Manufactured from premium carbide material for superior performance, the standard 2-flute design will provide the rigidity needed for increased strength and reduced vibration. S501 ball nose milling cutters can be used for contour milling in steels, stainless steelss and cast iron.


Product Specifications
Max Depth of Cut (mm)6mm
Connection Diameter (Inch)0.1181"
Cutting Diameter (Inch)0.0787"
Overall Length (Inch)1.4961"
Material CodeHM
Radial Rake Angle10
No of Flute2
Flute Helix Angle30
Corner Radius (mm)1mm
CoatingX-CEED
Surface ColorBlack-Deep Purple
