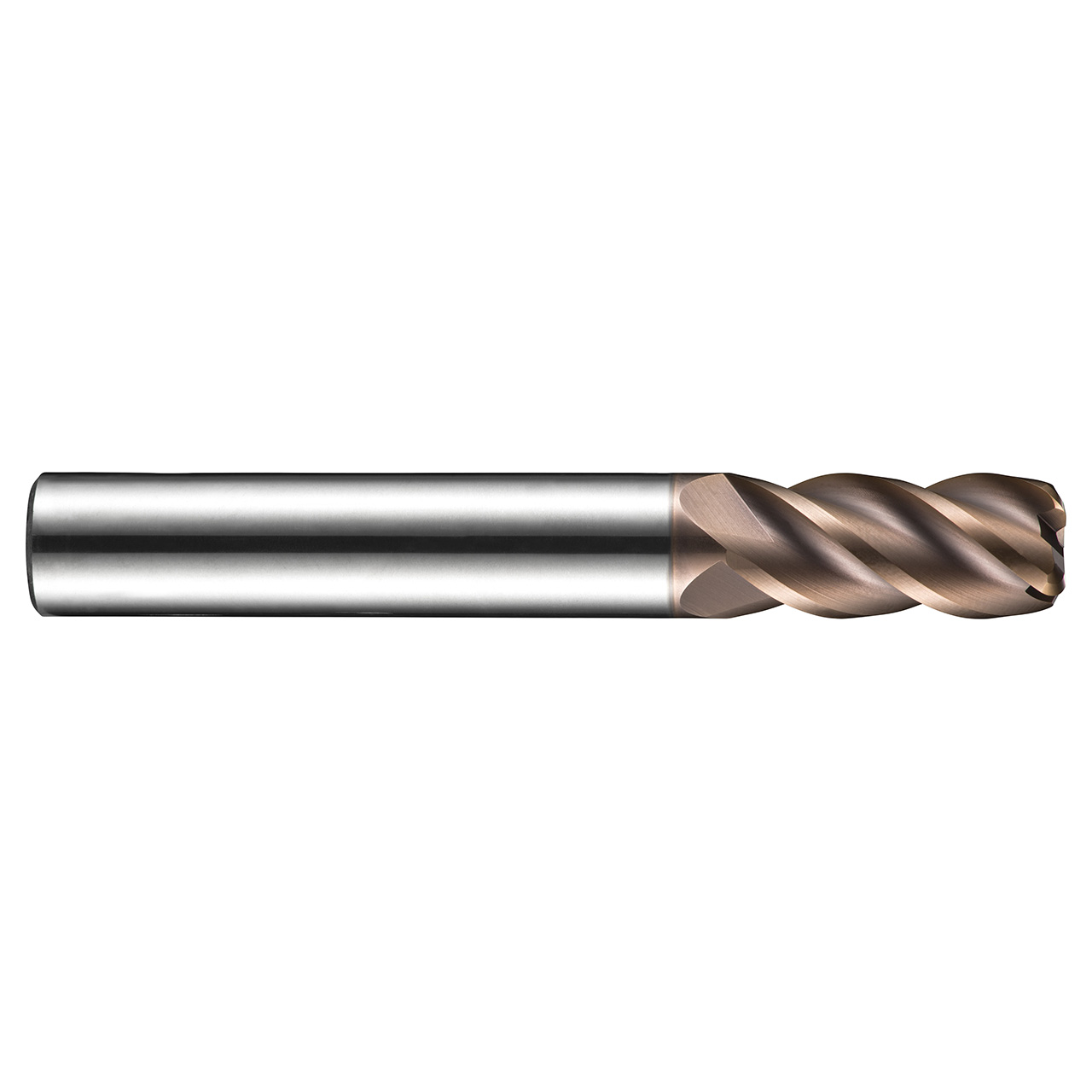

Dormer S5233.0XR0.3XD3 | 0.1181" Diameter x 1.9685" OAL x 0.3mm Radius 4 Flute TiSiN Coated Corner Radius End Mill

$63.00
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25141066
UPC:
7320760682753
Weight:
0.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

One of Dormer's range of carbide cutters, the S523 corner radius milling cutter has a standard flute design with corner radius, providing high rigidity for standard profile milling where a standard radius is required. Made from premium carbide for great performance and longer tool life, the milling cutters have a titanium silicon nitride coating, which further increases the life of the tool and improves performance when milling difficult to machine materials. S523 corner radius end mills have a 40 degree helix for high performance profiling on CNC machines and are designed specifically for high speed machining in hardened tool steels up to 63HRC.


Product Specifications
Max Depth of Cut (mm)9mm
Connection Diameter (Inch)0.1181"
Cutting Diameter (Inch)0.1181"
Overall Length (Inch)1.9685"
Material CodeHM
Radial Rake Angle-6
No of Flute4
Flute Helix Angle40
Corner Radius (mm)0.3mm
CoatingTiSiN
Surface ColorRose Gold
