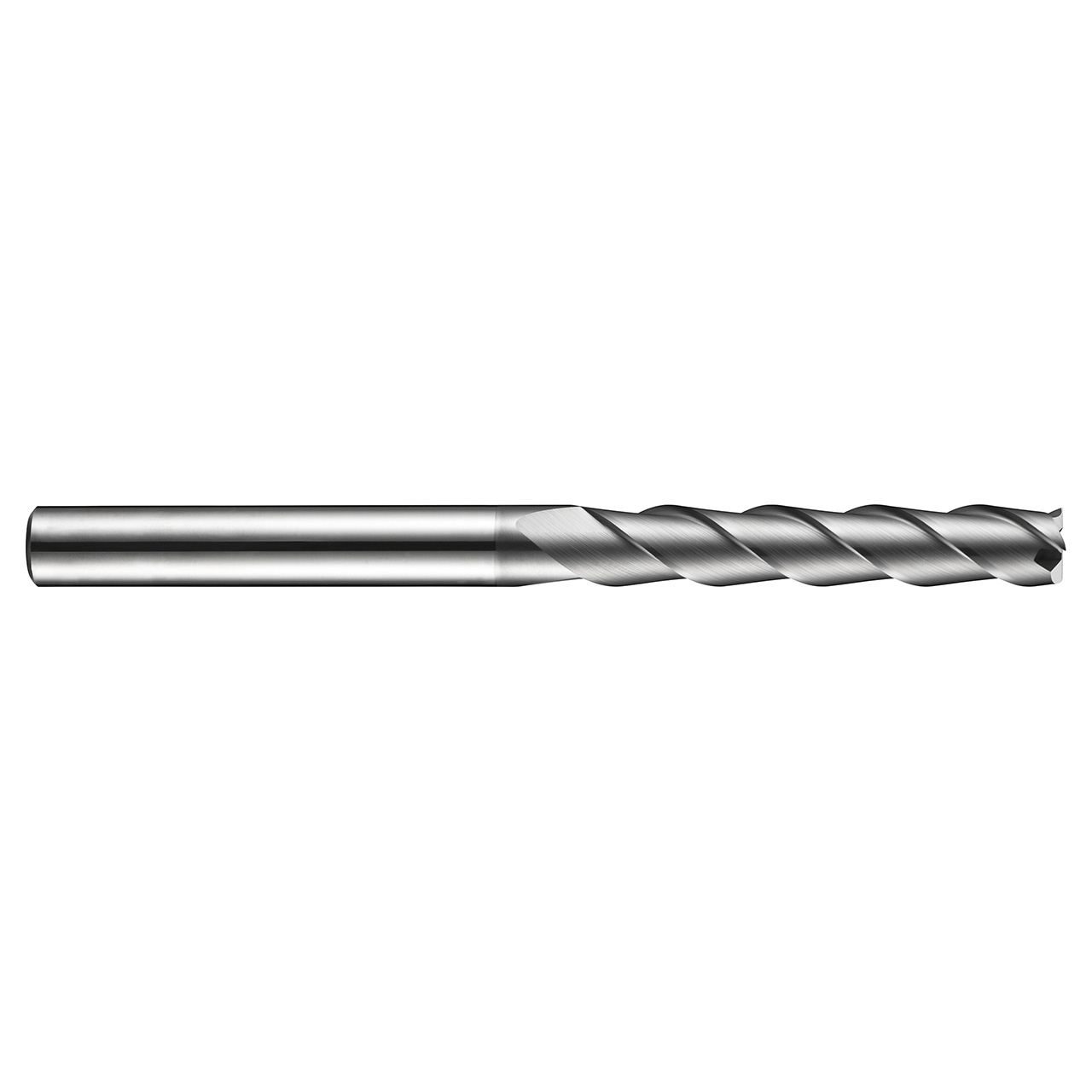

Part of Dormer's carbide milling cutter range, S715 3-flute slot drills have an extra long series flute design which provides high rigidity for profile milling deep walls. The tools can be used for plunging, ramping and profile milling in steels, cast iron and stainless steels. With a 40 degree helix, they are designed for high performance slotting and profiling on CNC machines. The aluminium chrome nitride coating increases the life of the tool and improves performance when milling difficult to machine materials, whilst the premium carbide used in manufacture ensures you will get great performance and an extended tool life.
Max Depth of Cut (mm) | 57mm |
Connection Diameter (Inch) | 0.3937" |
Cutting Diameter (Inch) | 0.3937" |
Overall Length (Inch) | 4.9213" |
Material Code | HM |
Radial Rake Angle | 10 |
No of Flute | 3 |
Flute Helix Angle | 40 |
Coating | AlCrN |
Surface Color | Black-Deep Purple |
