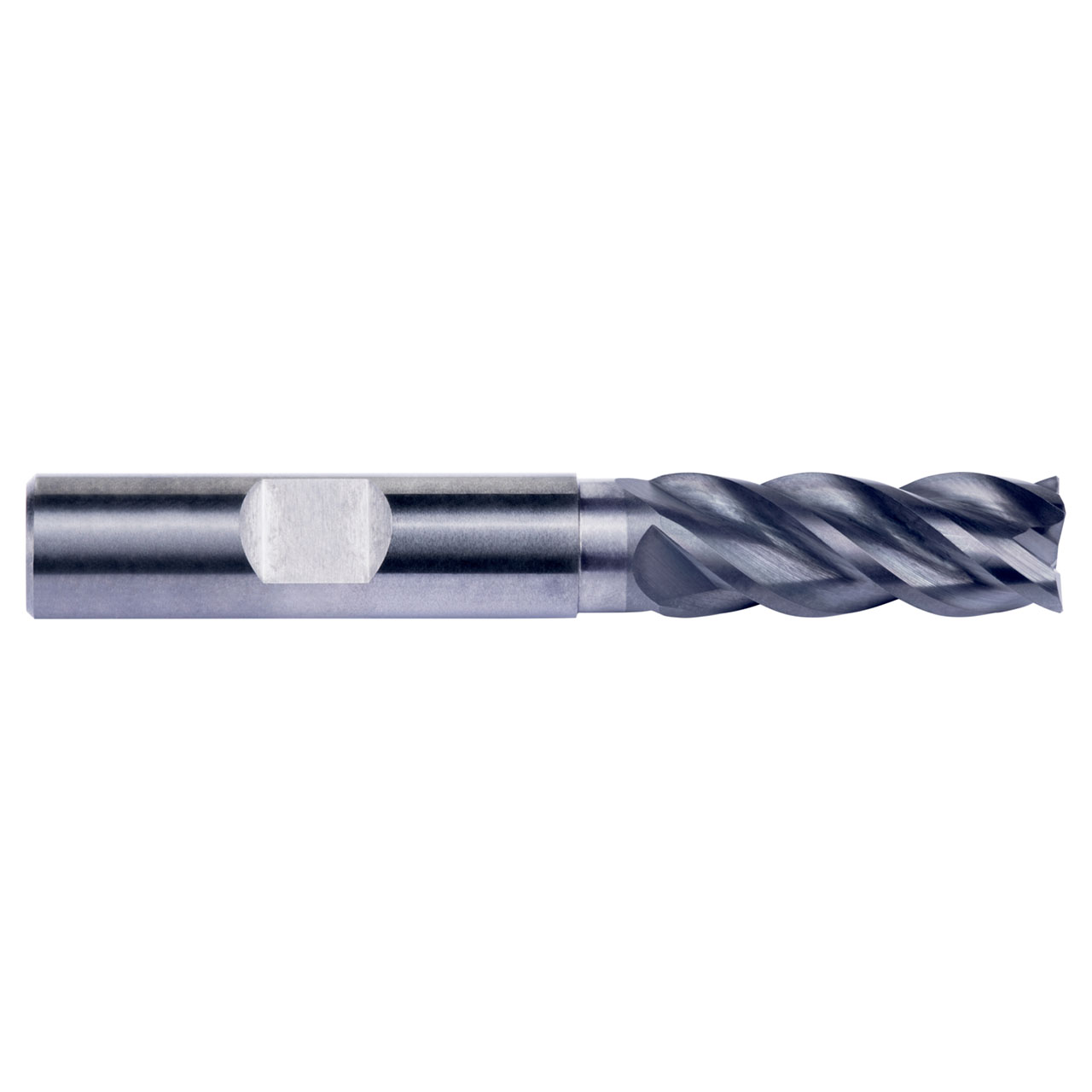

Dormer S722HB18.0 | 0.7087" Diameter x 3.622" OAL 4 Flute AlCrN Coated Square End Mill

$338.40
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25211992
Weight:
10.24 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

S722HB milling cutters have a DIN 6535 HB shank for secure holding to achieve high metal removal rates, with a very versatile design for slotting, ramping, plunging and contouring. The aluminium chromium nitride coating reduces friction and provides excellent wear resistance for increased tool life, whilst the positive geometry results in a smooth cutting action to cut down on work hardening. S722HB milling cutters have a neck recess so the tool avoids contact with the walls when shoulder milling.


Product Specifications
Usable Length (mm)42mm
Max Depth of Cut (mm)32mm
Connection Diameter (Inch)0.7087"
Cutting Diameter (Inch)0.7087"
Overall Length (Inch)3.622"
Material CodeHM
Radial Rake Angle7
No of Flute4
Flute Helix Angle40
Corner Radius (mm)0.2mm
CoatingAlCrN
Surface ColorBlack-Deep Purple
