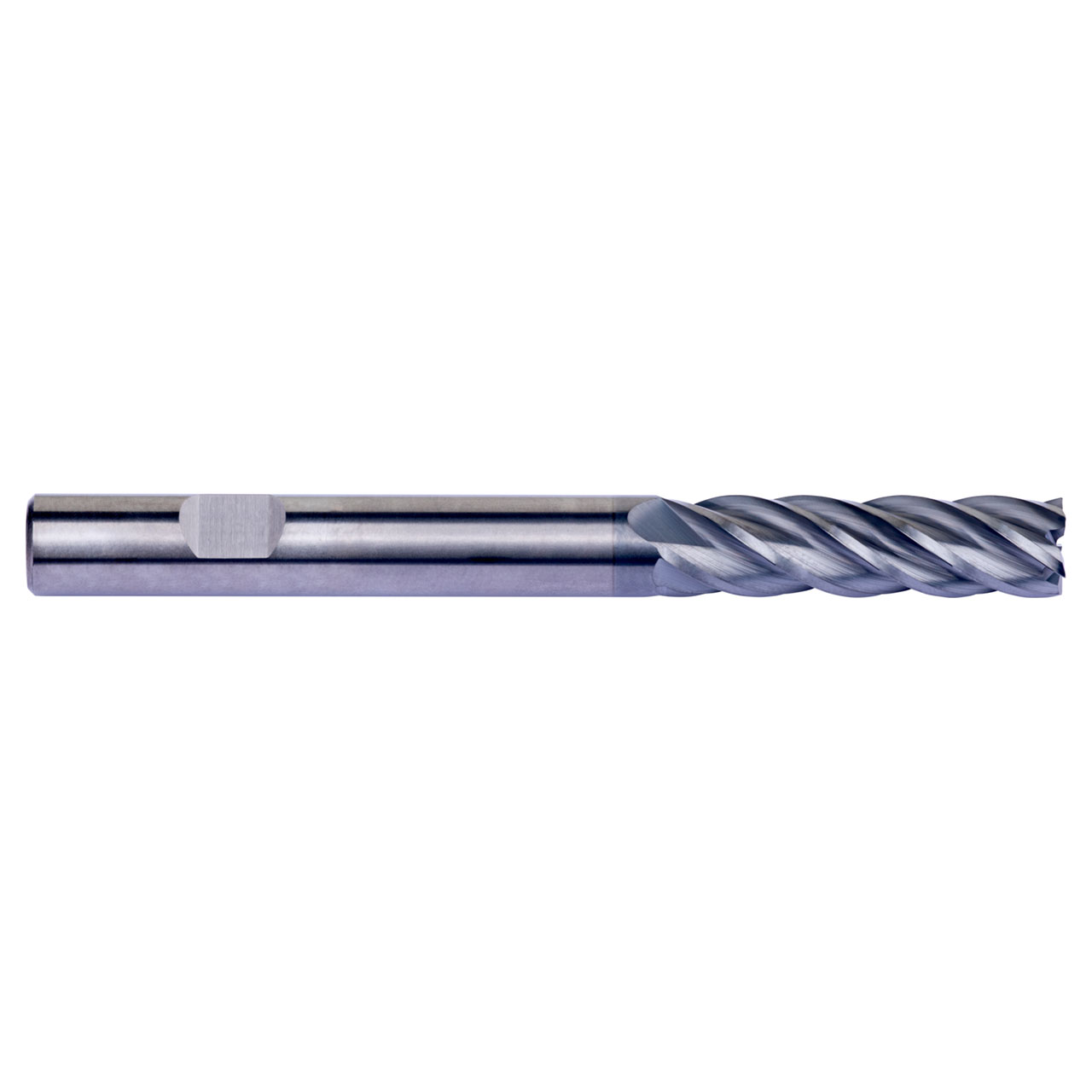

Dormer S772HB10.0 | 0.3937" Diameter x 3.937" OAL 5 Flute AlCrN Coated Trochoidal End Mill

$120.00
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25212021
Weight:
3.52 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

S772HB 5-flute milling cutters from Dormer come with positive geometry, promoting a smooth cutting action when machining stainless steels and super-alloys. The unequal helix reduces chatter and vibrations for better surface finish and improved tool life, whilst the 5-flute design also helps reduce vibration at higher fed rates. S772HB milling cutters come with a corner radius to reduce chipping and improve tool life, and have an aluminium chromium nitride coating to reduce friction and providing excellent wear resistance to increase tool life.


Product Specifications
Max Depth of Cut (mm)38mm
Connection Diameter (Inch)0.3937"
Cutting Diameter (Inch)0.3937"
Overall Length (Inch)3.937"
Material CodeHM
Radial Rake Angle10
No of Flute5
Corner Radius (mm)0.2mm
CoatingAlCrN
Surface ColorBlack-Deep Purple
