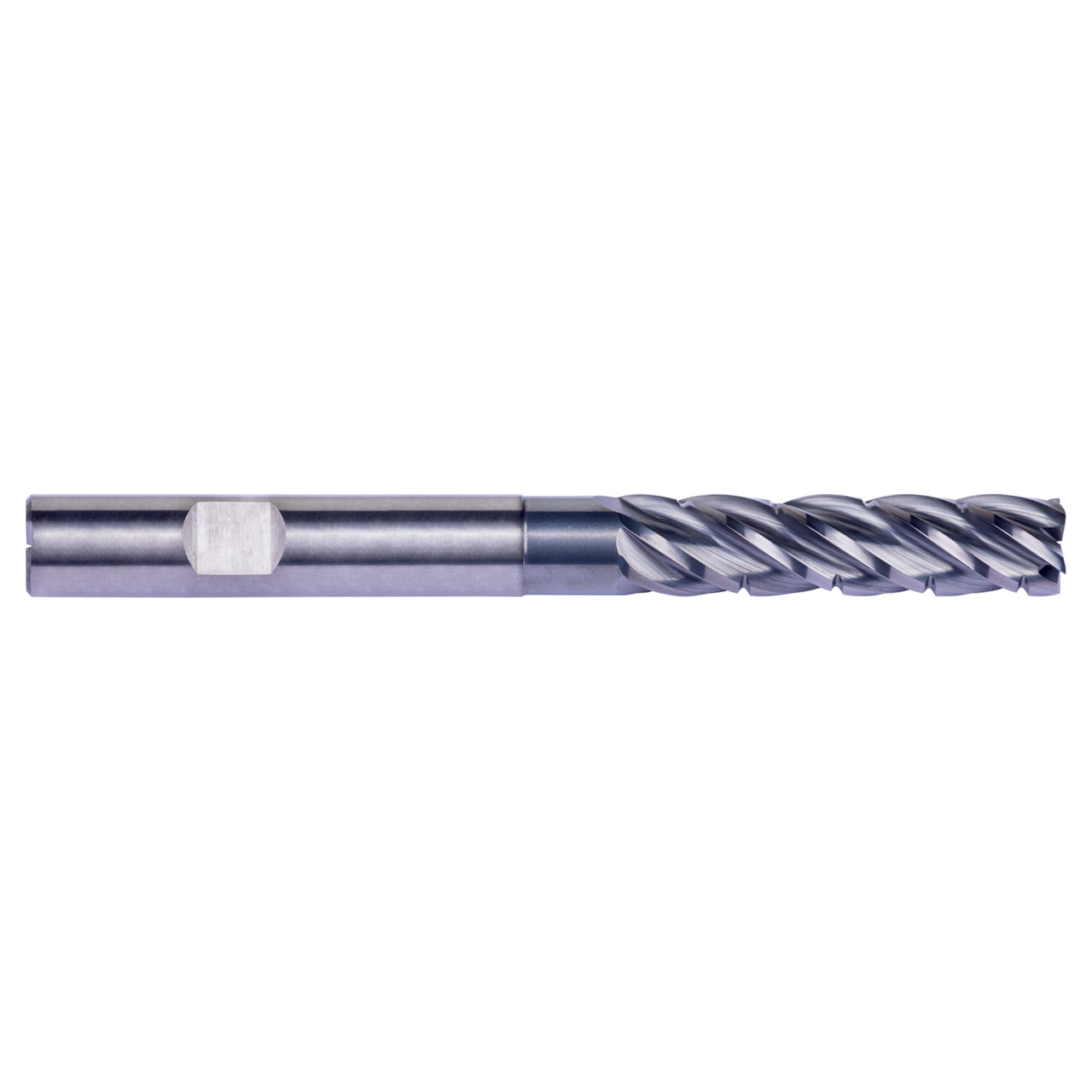

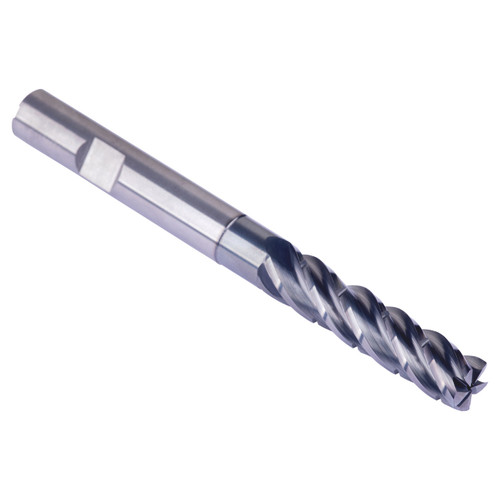

Dormer S773HB12.0 | 0.4724" Diameter x 3.937" OAL 5 Flute AlCrN Coated Trochoidal End Mill

$248.40
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25212030
Weight:
4.93 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

With an aluminium chromium nitride coating to reduce friction and provide excellent wear resistance for increased tool life, S773 milling cutters have a 5-flute design which reduces vibration at higher speeds. The FS Style chip dividers break the swarf into manageable pieces to reduce spindle load and increase metal removal, whilst the through coolant further improves swarf removal and is an aid to machining difficulty to machine materials. For an improved surface finish and to further extend tool life by reducing chatter and vibrations, S773HB 5-flute milling cutters have an unequal helix.


Product Specifications
Usable Length (mm)54mm
Max Depth of Cut (mm)42mm
Connection Diameter (Inch)0.4724"
Cutting Diameter (Inch)0.4724"
Overall Length (Inch)3.937"
Material CodeHM
Radial Rake Angle10
No of Flute5
Corner Radius (mm)0.2mm
CoatingAlCrN
Surface ColorBlack-Deep Purple
