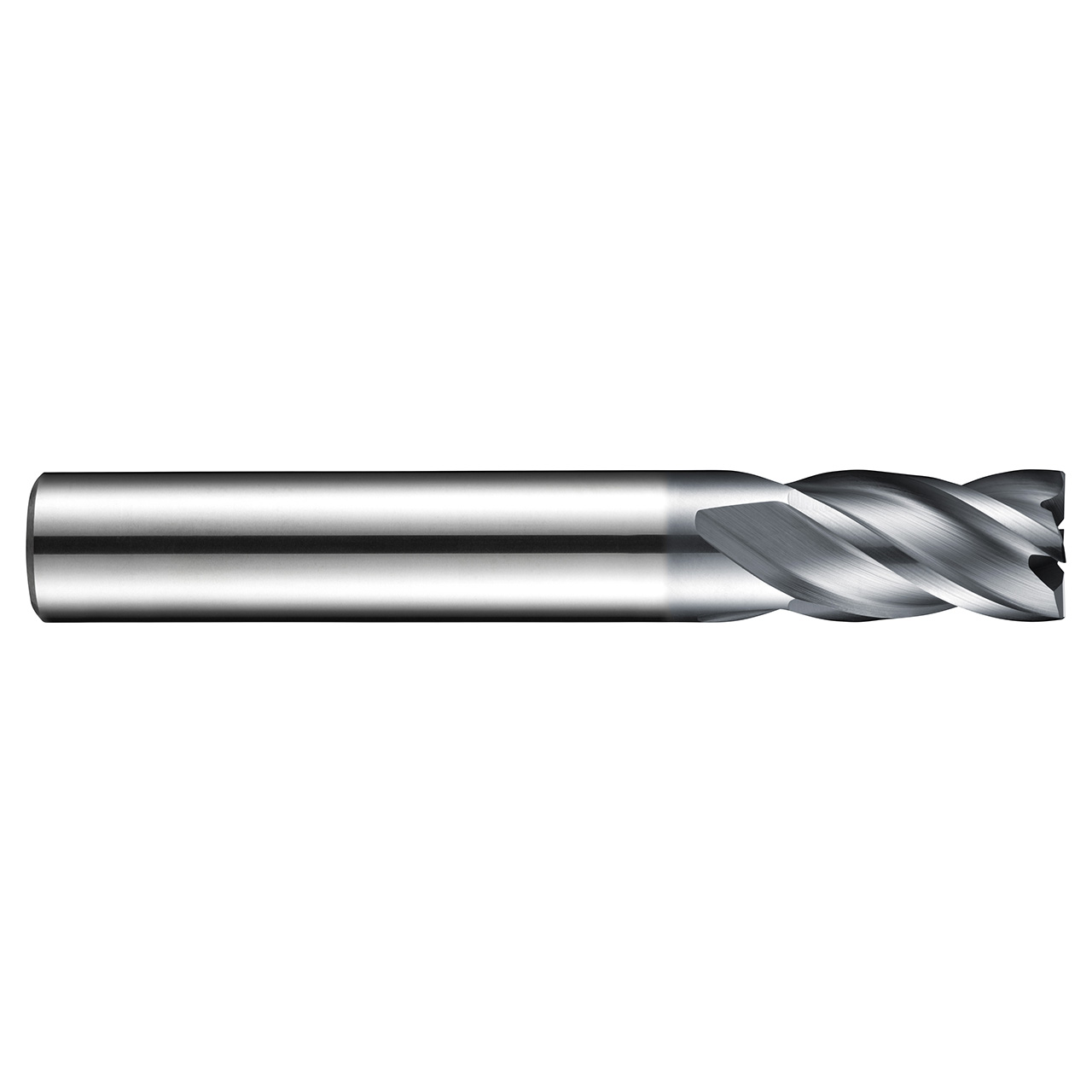

Dormer S804HA5.0 | 0.1969" Diameter x 2.126" OAL 4 Flute AlCrN Coated Square End Mill

$48.12
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
10114461
Weight:
0.89 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

S804HA 4-flute milling cutters are manufactured from premium carbide for superior performance and longer tool life. The cutters have a very strong design and can be used for both slotting and profile milling. They are suitable for plunging, ramping and profile milling in cast iron, non-ferrous materials, steels and stainless steels; further evidence of their versatility. The short flute length provides high rigidity for shallow profile milling applications. S804HA 4-flute end mills have a special Alcrona coating, with benefits of improved performance when milling materials which are difficult to machine and further improvements in tool life.


Product Specifications
Max Depth of Cut (mm)9mm
Connection Diameter (Inch)0.2362"
Cutting Diameter (Inch)0.1969"
Overall Length (Inch)2.126"
Material CodeHM
Radial Rake Angle9
No of Flute4
Flute Helix Angle34
Corner Chamfer Angle45
Corner Chamfer Width (mm)0.13mm
CoatingAlCrN
Surface ColorBlack-Deep Purple
