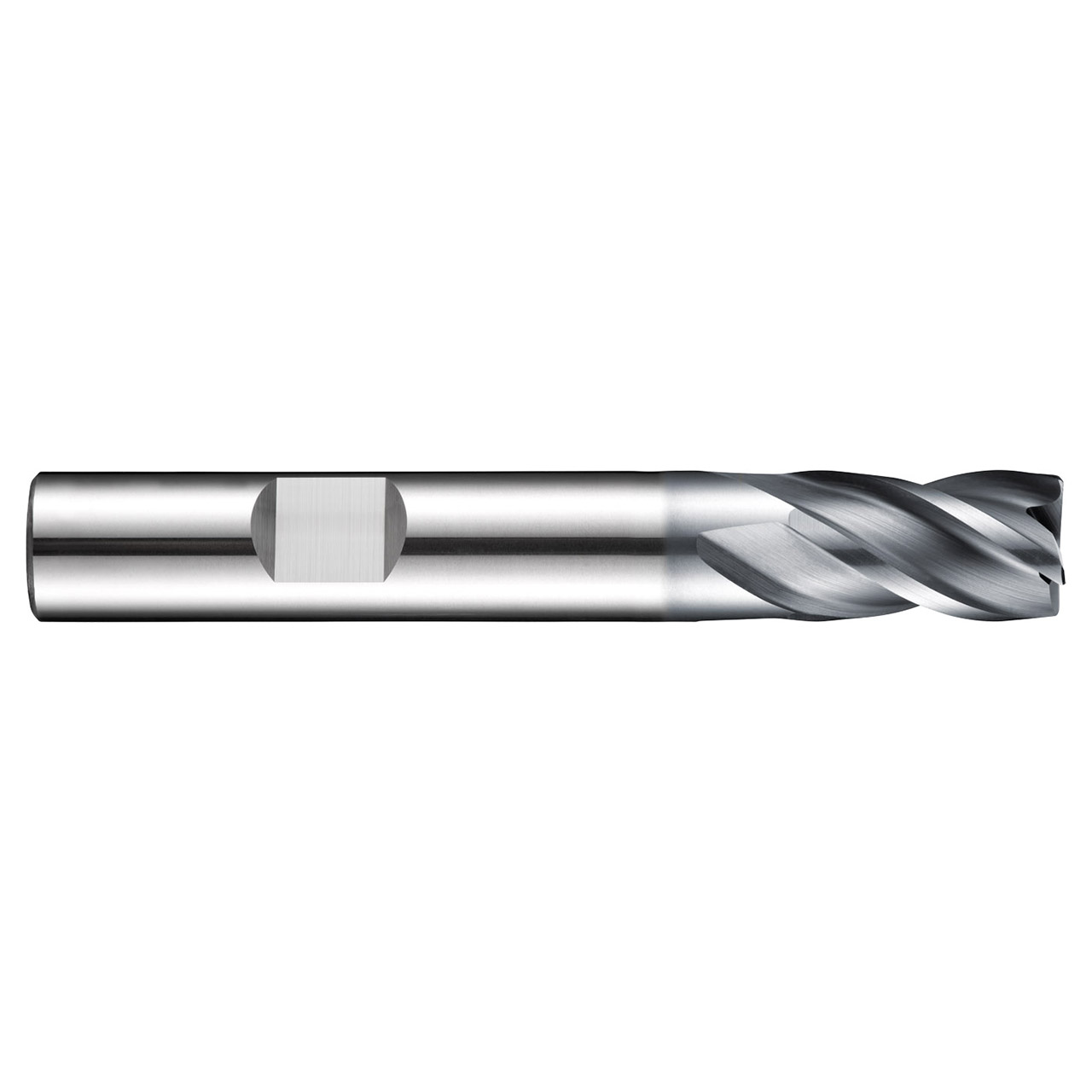

S804HB 4-flute milling cutters can be used for both slotting and profile milling, whilst the short flute design provides increased rigidity for shallow profile milling applications. The cutters are manufactured from premium carbide and have a special Alcrona coating which, together, extend the life of the tool and give superior performance, especially when milling materials which are difficult to machine. With a very versatile range of uses and suitable materials, the S804HB 4-flute milling cutter can be used for plunging, ramping and profile milling and is capable of machining steels, stainless steels, non-ferrous materials and cast iron.
Max Depth of Cut (mm) | 5mm |
Connection Diameter (Inch) | 0.2362" |
Cutting Diameter (Inch) | 0.1181" |
Overall Length (Inch) | 1.9685" |
Material Code | HM |
Radial Rake Angle | 9 |
No of Flute | 4 |
Flute Helix Angle | 34 |
Corner Chamfer Angle | 45 |
Corner Chamfer Width (mm) | 0.08mm |
Coating | AlCrN |
Surface Color | Black-Deep Purple |
