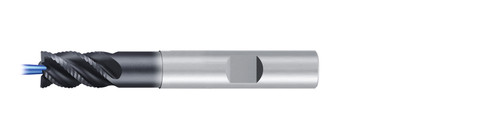

Emuge 2869LZ.005 | 5 mm Multi-Cut - Coolant Fed -ALCR

$231.04 $150.17
(You save $80.87)
Brand:
Emuge
Cutting Diameter (Decimal Inch):
0.1969"
Cutting Diameter (mm):
5.00mm
Shank Diameter (mm):
6.00mm
Cutting Edge Material:
Carbide
Flute Length (mm):
9.00mm
Number of Flutes:
4
Flute Direction:
Right Hand
Finish/Coating:
ALCR
Tool Type:
Square End
Application:
Rougher
Overall Length (mm):
57.00mm
interval quantity:
1
SKU:
25184915
UPC:
Weight:
0.04 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
2869LZ.005-A

Features:

  • Universal design for high performance milling. Coolant fed for chip evacuation
  • Increased production rates with higher feed rates. Maximum chip evacuation properties withy higher tool life

Product Specifications
Chamfer Form
Size5 mm
Applicable MaterialSteel, Cast Iron, Copper Alloys, Hardened Materials
ApplicationRougher
TypeSquare End
Length GroupRegular
Coolant FedAxial
Coating/FinishALCR
MaterialCarbide
Number of Flutes4
Helix Angle (Degrees)45 Degree
Shank Diameter (mm)6 mm
Shank Toleranceh6
Shank StyleHB
Overall Length (mm)57 mm
Flute Length (mm)9 mm
Flute DirectionRight Hand
