Features:

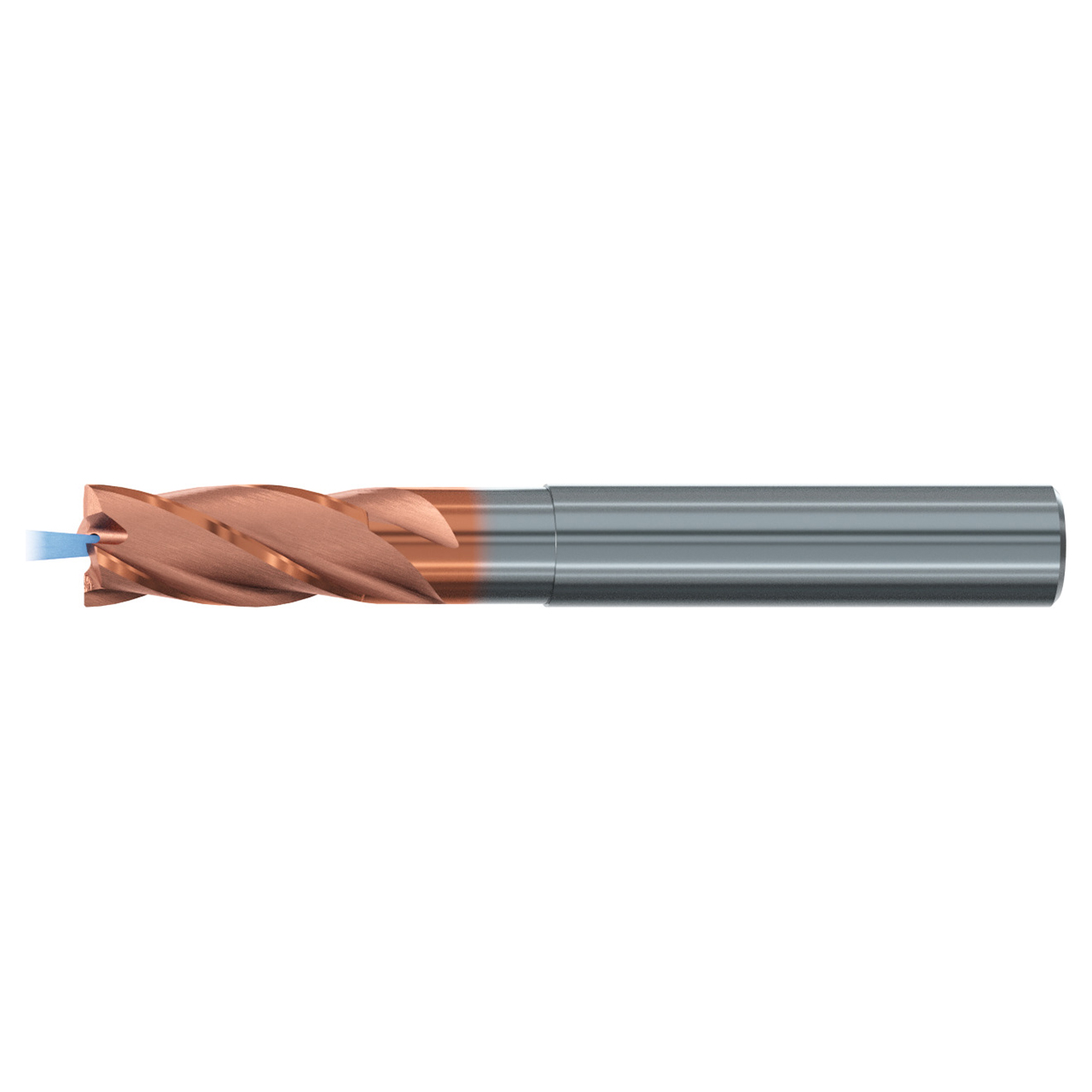

- TOP-Cut carbide end mill for roughing and finishing in almost all materials
- Unique geometry enables low-vibration machining and universal use in almost all materials and milling processes
- Axial coolant hole for maximum chip evacuation
- TIALN coated for heat and wear resistance
Product Specifications
| Manufacturer Part Number | 3806AZ.018 |
| Cutting Diameter (Decimal Inch) | 0.709" |
| Cutting Diameter (mm) | 18.00mm |
| Overall Length (mm) | 118.00mm |
| Flute Length (mm) | 32.00mm |
| Shank Tolerance | h6 |
| Tool Cylindrical - Shank Style | Cylindrical - HA |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| Group Length | X-Long |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |
| Number of Flute | 4 |
| Flute Helix Angle (Degree) | 35-38 Degree |
| Cutting Edge Material | Carbide |
| Coating | TIALN |
| Tool Type | Square End |
| End Mill - End Style | Square & Corner Radius End Mills |
| End Shape | Square |
| Application | Finishing |
| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Mill Diameter (Inch):
45/64"
Mill Diameter (Decimal Inch):
0.7087"
Mill Diameter (mm):
18.00mm
Number of Flutes:
4
Overall Length (Inch):
4-41/64"
Overall Length (Decimal Inch):
4.6456"
Overall Length (mm):
118.00mm
Finish/Coating:
TiAlN
Shank Diameter (Inch):
45/64"
Shank Diameter (Decimal Inch):
0.7086"
Shank Diameter (mm):
18.00mm
Application:
Finishing
