Features:

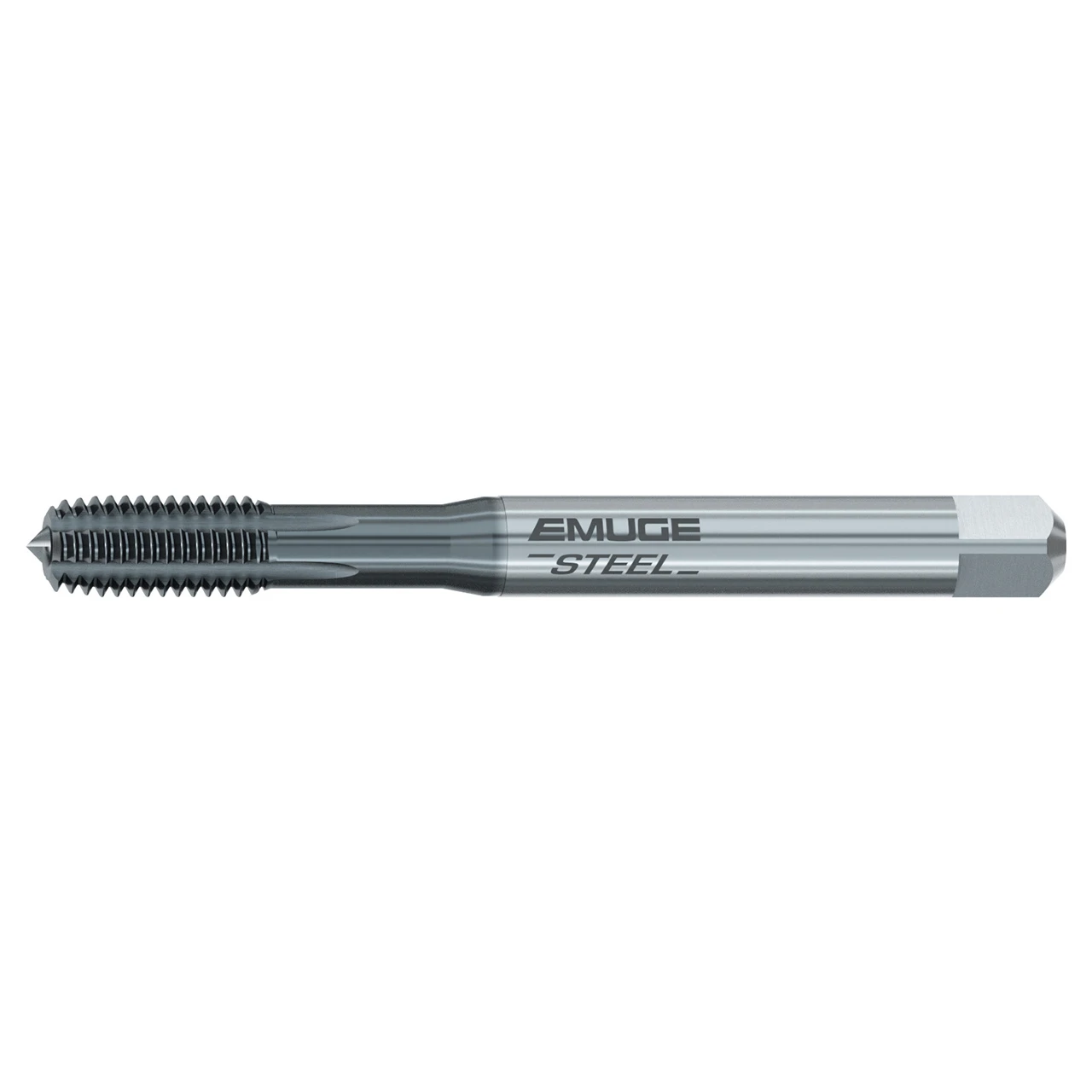

- The Druck Steel roll form tap for the chipless production of internal threads, blind and though hole
- Steel Alloys & Long Chipping Materials
- TICN coated for additional wear resistance
- DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks
Product Specifications
| Manufacturer Part Number | BU929000.5635 |
| Thread Size | #6-40 |
| Thread Diameter Size | #6 |
| Thread Standard | STI-UNF |
| Thread per Inch (TPI) | 40 TPI |
| Tap Square (Decimal Inch) | 0.131" |
| Thread Length (Decimal Inch) | 0.512" |
| Overall Length (Decimal Inch) | 2.480" |
| Shank Machine Side Connection Diameter (Decimal Inch) | 0.168" |
| Thread Tolerance Class | 2BX |
| Tap Chamfer | 2-3 P |
| Tap Chamfer Form | C |
| Dimensional Standards | DIN/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Group Length | DIN Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Cutting Edge Material | HSSE |
| Coating | TICN |
| Tool Type | Roll Form - Druck |
| Application | STI Taps |
| Product Type | Thread Forming STI Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Thread Size:
#6-40
Finish/Coating:
TICN
Overall Length (Inch):
2-31/64"
Overall Length (Decimal Inch):
2.4800"
Overall Length (mm):
62.99mm
Thread Standard:
STI-UNF
Shank Diameter (Inch):
11/64"
Shank Diameter (Decimal Inch):
0.1680"
Shank Diameter (mm):
4.27mm
