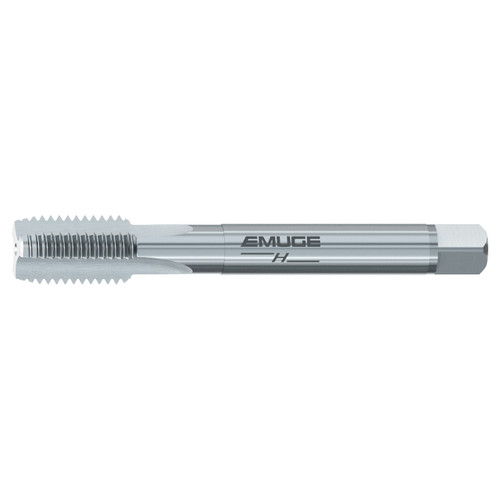

Features:
- HSSE tap, best suited for short chipping, high tensile strength materials (cast iron & hardened steels)
- For blind and through hole applications
- NT - nitride surface treatment for increased wear resistance
- DIN/DIN standard dimensions for overall length and shank size
Product Specifications
| Manufacturer Part Number | C0100501.0250 |
| Thread Size | M 8x0.75 |
| Thread Diameter Size | M 8 |
| Thread Standard | MF |
| Thread Pitch (mm) | 0.75mm |
| Tap Square (mm) | 4.90mm |
| Thread Length (mm) | 14.00mm |
| Overall Length (mm) | 80.00mm |
| Thread Tolerance Class | 6HX |
| Tap Chamfer | 2-3 P |
| Tap Chamfer Form | C |
| Dimensional Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Group Length | DIN Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 3 |
| Cutting Edge Material | HSSE |
| Coating | NT |
| Tool Type | EMUGE H |
| Application | Straight Flute Taps |
| Product Type | Straight Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Thread Size (Inch):
M 8x0.75
Overall Length (Inch):
3-5/32"
Overall Length (Decimal Inch):
3.1496"
Overall Length (mm):
80.00mm
Number of Flutes (2, 3, 4, etc.):
3
Finish/Coating (AL2 Plus, AlCrN, etc):
NT
Thread Standard (BA, BSF, BSW, Metric, etc):
MF
interval quantity:
1
