Features:

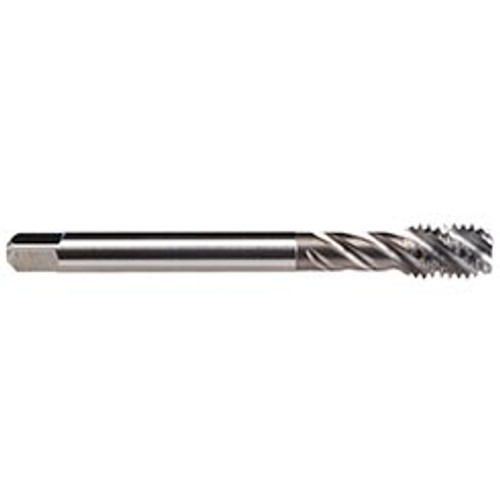

- The Enorm Z/E design is typically for blind hole threads in long chipping materials
- Longer tool life and more consistent thread quality
Product Specifications
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
M16 X 2
Thread Limit:
6H mod
Chamfer:
1.5 -2 P
Finish/Coating:
Bright
Material:
HSSE
Overall Length (Inch):
4-59/64"
Overall Length (Decimal Inch):
4.9212"
Overall Length (mm):
125mm
Helix Angle:
45°
Flute Direction:
Right Hand
Thread Standard:
STI-M
Thread Length (Inch):
1-1/16"
Thread Length (Decimal Inch):
1.0629"
Thread Length (mm):
27mm
Shank Diameter (Inch):
35/64"
Shank Diameter (Decimal Inch):
0.5511"
Shank Diameter (mm):
14mm
