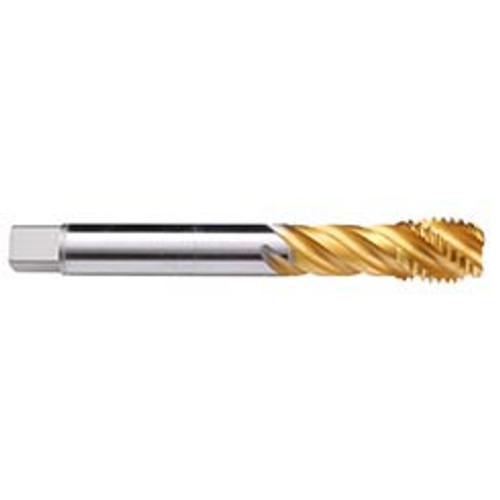

Emuge C3650F01.0303 | M12x1.5 -Tap - EnorMZ-Speed - IKZ

$158.24 $155.07
(You save $3.17)
Ships:
From Manufacturer
Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
M12 X 1.5
Thread Limit:
6HX
Chamfer:
2 -3 P
Material:
HSSE-PM
Finish/Coating:
TiN-60
Flute Direction:
Right Hand
Overall Length (Inch):
3-15/16"
Overall Length (Decimal Inch):
3.9371"
Overall Length (mm):
100mm
interval quantity:
1
SKU:
15043040
UPC:
Weight:
0.09 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
C3650F01.0303-B

Related Products

Features:

  • Speed taps are able to operate at higher cutting speeds than conventional designs. Enorm style taps have a spiral flute design suitable for blind hole applications
  • Longer tool life and more consistent thread quality

Product Specifications
Chamfer2 -3 P
Chamfer FormC
Pitch1.5
SizeM 12
Thread Limit6HX
Thread StandardMF
Applicable MaterialUniversal Materials
ApplicationBlind Hole
Coolant FedAxial
Coating/FinishTiN-60
MaterialHSSE-PM
TypeEnorm - Speed
Length GroupDIN Length
Helix Angle (Degrees)45 Degree
Shank Diameter (mm)9 mm
Dimension StandardsDIN/DIN
Shank Toleranceh9
Overall Length (mm)100 mm
Thread Length (mm)15 mm
Flute DirectionRight Hand
