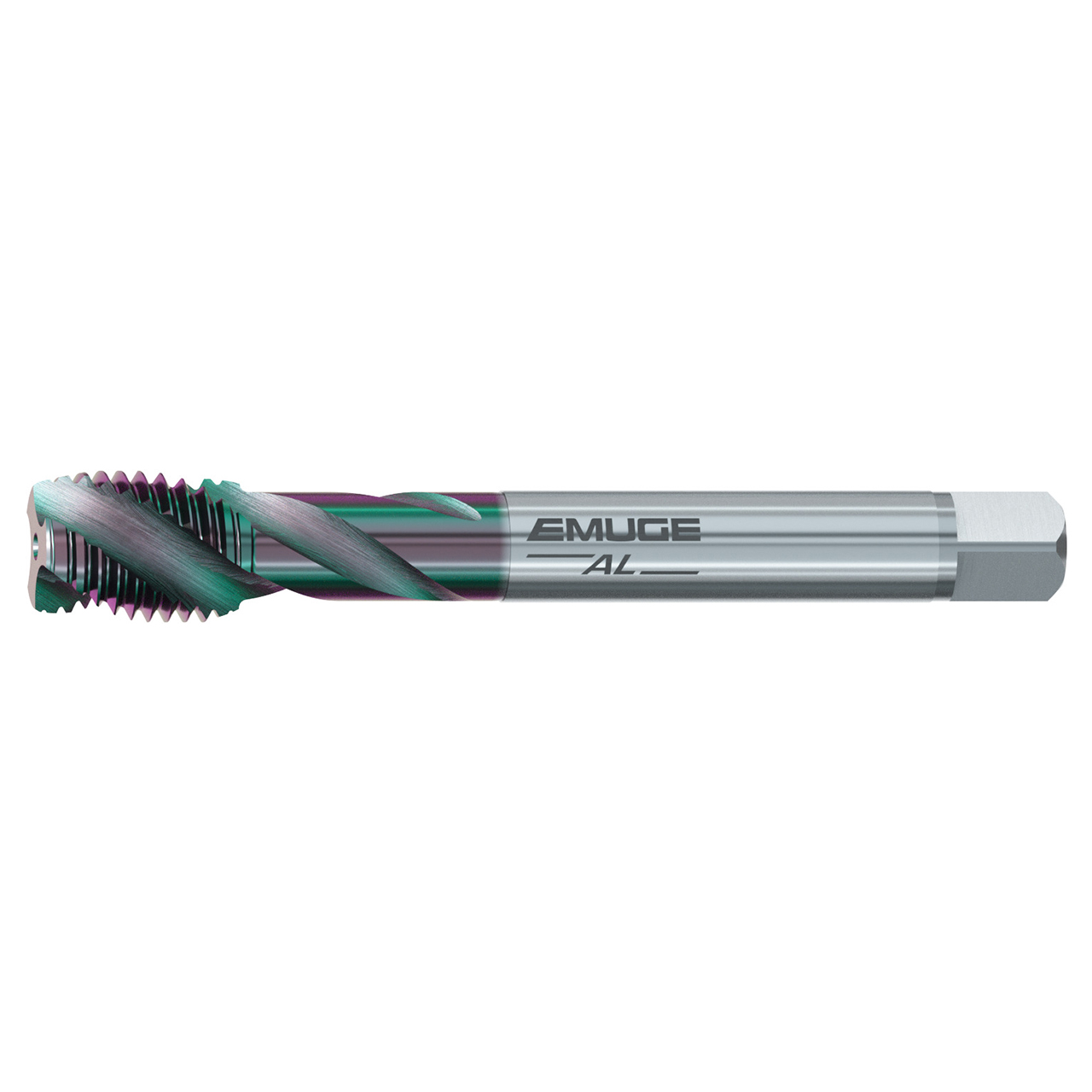

Features:
- The Enorm AL design is typically for blind hole threads in long chipping materials.
- Higher rake angle provides better shearing action for maximum tool life
- GLT-104 non-stick / low friction coating is well suited for threading aluminum alloys
- DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks
Product Specifications
| Manufacturer Part Number | CU503G10.5013 |
| Thread Size | 1/2"-13 |
| Thread Diameter Size | 1/2" |
| Thread Per Inch (TPI) | 13 TPI |
| Tap Square (Decimal Inch) | 0.442" |
| Thread Length (Decimal Inch) | 0.625" |
| Overall Length (Decimal Inch) | 4.331" |
| Length Group | DIN Length |
| Number of Flutes | 2 |
| Flute Helix Angle (Degree) | 45 Degree |
| Dimensional Standard | DIN/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Right Hand |
| Thread Standard | UNC |
| Thread Tolerance Class | 3B |
| Tap Chamfer | 2 -3 P |
| Tap Chamfer Form | C |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE |
| Coating | GLT-104 |
| Product Type | Spiral Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Thread Size:
1/2-13"
Thread Diameter Size:
1/2"
Thread Per Inch (TPI):
13 TPI
Overall Length (Inch):
4-1/3"
Overall Length (Decimal Inch):
4.3310"
Overall Length (mm):
110.01mm
Thread Length (Inch):
5/8"
Thread Length (Decimal Inch):
0.6250"
Thread Length (mm):
15.88mm
Number of Flutes:
2
Coating:
GLT-104
Flute Helix Angle (Degree):
45 Degree
