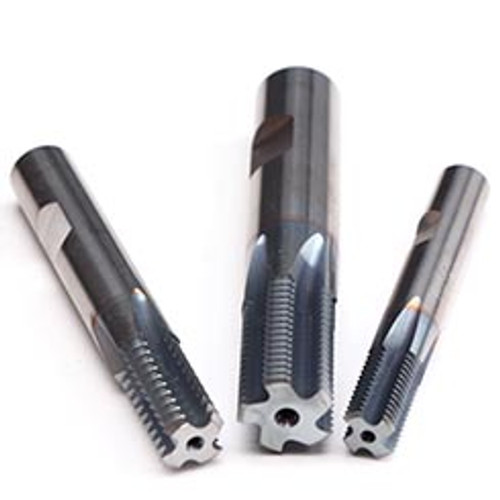

Features:
- For production of internal threads or external threads
- Tool for different thread sizes but one pitch only
Product Specifications
| Cutter Diameter (mm) | 15.9 mm |
| Pitch | 1.5 |
| Size | 22 min |
| Thread Standard | M/MF |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Aluminum, Titanium |
| Application | Full Profile |
| Type | SHUR-THREAD |
| Length Group | Standard |
| Coolant Fed | Axial |
| Finish/Coating | TICN |
| Material | Carbide |
| Number of Flutes | 5 |
| Helix Angle (Degrees) | 0 Degree |
| Shank Diameter (mm) | 16 mm |
| Dimension Standards | DIN 13 |
| Shank Tolerance | h6 |
| Shank Style | HB |
| Overall Length (mm) | 90 mm |
| Flute Length (mm) | 26.1 mm |
| Flute Spiral Direction | Right Hand, Left Hand |
