Features:

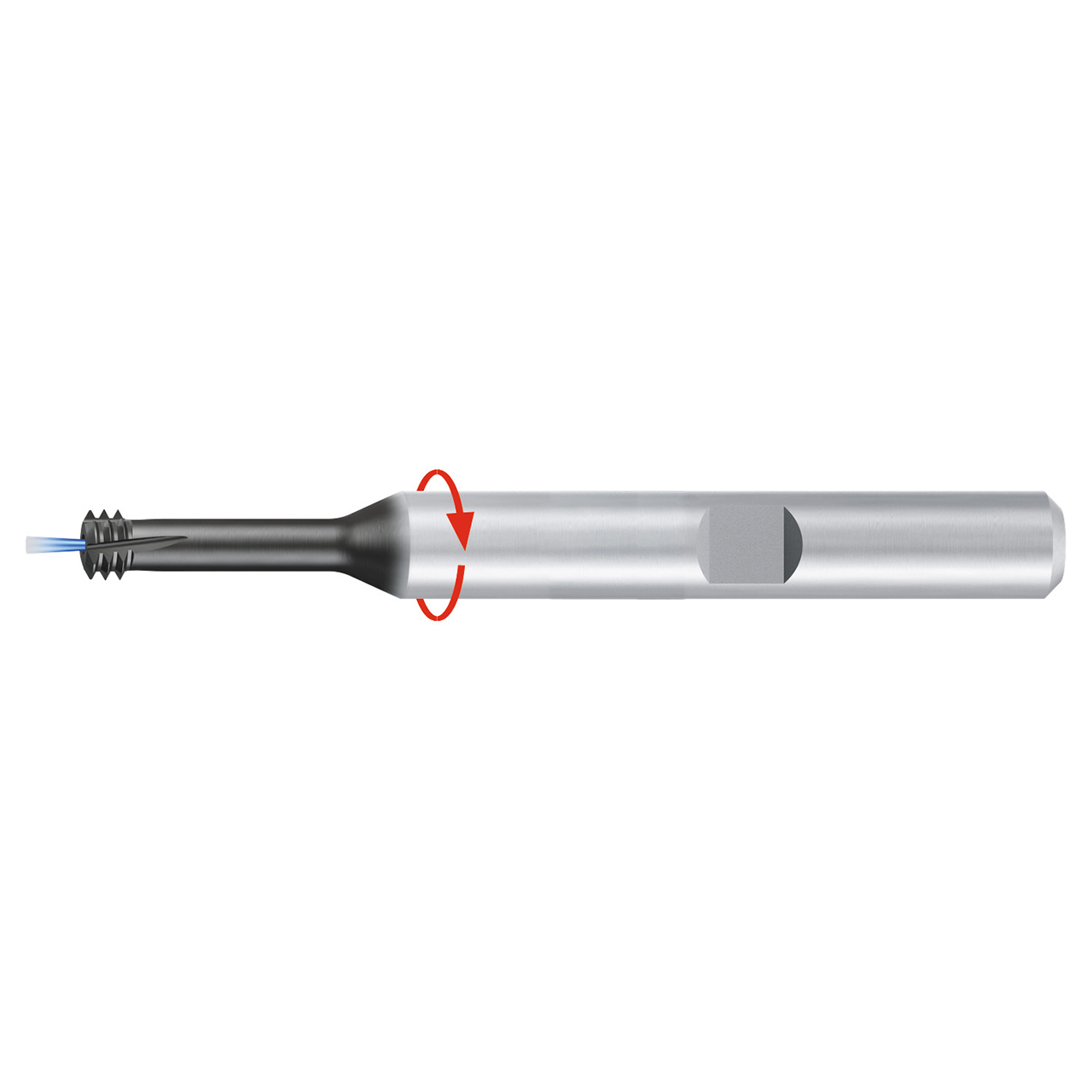

- Solid carbide circular thread mill with left hand flute design
- Premium sub-micro grain carbide tool for aerospace materials. TIALN-T46 coating for added heat and wear resistance
Product Specifications
| Cutter Diameter (mm) | 0.207" |
| Pitch | 27 |
| Size | 1/4" |
| Thread Standard | UNF |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Aluminum, Titanium |
| Application | Three Tooth Profile |
| Type | ZGF-S-Cut |
| Length Group | 2 x D |
| Coolant Fed | Axial |
| Coating/Finish | TIALN-T14 |
| Material | Carbide |
| Number of Flutes | 5 |
| Helix Angle (Degrees) | 0 Degree |
| Shank Diameter (mm) | 6 mm |
| Shank Tolerance | h6 |
| Shank Style | HB |
| Overall Length (mm) | 2.165" |
| Flute Length (mm) | 0.516" |
| Flute Direction | Left Hand |
