Features:

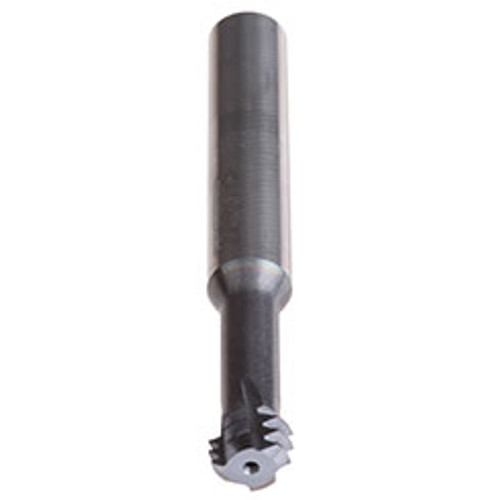

- Solid carbide circular thread mill with left hand flute design for materials like Inconle and Titanium
- For machining threads down to M3 Correct thread profile for different thread sizes but one pitch only TIALN-T46 coating for added heat and wear resistance
Product Specifications
| Cutter Diameter (mm) | 8.2 mm |
| Pitch | 1.5 |
| Size | M 10 |
| Thread Standard | M |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Aluminum, Titanium, Nickel Alloys |
| Application | Three Tooth Profile |
| Type | ZGF-S-Cut |
| Length Group | 3 x D |
| Coolant Fed | Axial |
| Finish/Coating | TIALN-T46 |
| Material | Carbide |
| Helix Angle (Degrees) | 10 Degree |
| Shank Diameter (mm) | 10 mm |
| Dimension Standards | DIN 13 |
| Shank Style | HA |
| Overall Length (mm) | 78 mm |
| Flute Spiral Direction | Left Hand |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Cutting Diameter (mm):
8.20mm
Shank Diameter (mm):
10.00mm
Cutting Edge Material:
Carbide
Flute Length (mm):
32.30mm
Thread Size:
M 10 x 1.5
Thread Standard:
M
Number of Flutes:
5
Flute Direction:
Left Hand
Finish/Coating:
TiAlN-T46
Tool Type:
THREADS-ALL / AERO
Application:
Thread Milling
Overall Length (mm):
78.00mm
interval quantity:
1
