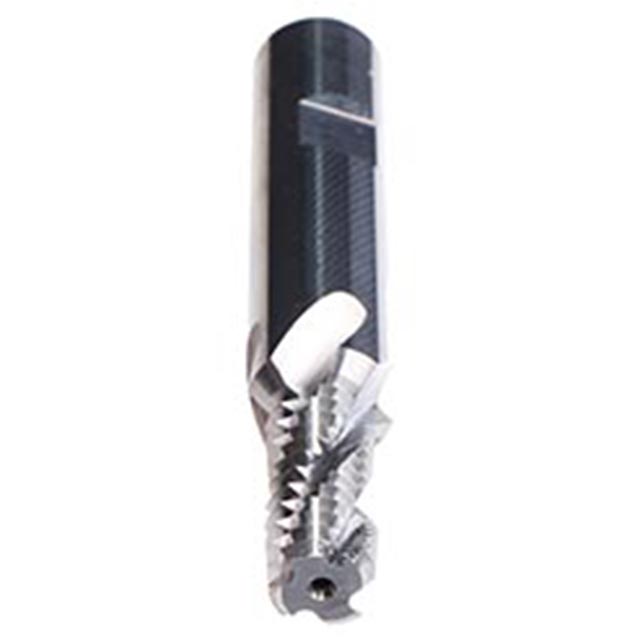

Emuge GF332101.5047 | 1/2-20 GSF Style Spiral Flt

$754.17 $739.09
(You save $15.08)
Brand:
Emuge
Cutting Diameter (mm):
11.10mm
Shank Diameter (mm):
14.00mm
Cutting Edge Material:
Carbide
Flute Length (mm):
26.10mm
Thread Standard:
UNF
Threads per Inch (TPI):
20 TPI
Number of Flutes:
4
Flute Direction:
Right Hand
Finish/Coating:
Bright
Tool Type:
SHUR-THREAD
Application:
Thread Milling
Overall Length (mm):
90.00mm
interval quantity:
1
SKU:
15046176
UPC:
Weight:
0.33 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping
Emuge GF332101.5047 | 1/2-20 GSF Style Spiral Flt

Related Products

Features:

  • Combination countersink & thread mill. Coolant fed design
  • Combine two operations into one tool. Coolant fed for efficient chip evacuation

Product Specifications
Cutter Diameter (mm)11.1 mm
Pitch20
Size1/2"
Thread StandardUNF
Applicable MaterialSteel, Cast Iron, Aluminum, Titanium
ApplicationFull Profile
TypeGSF-Thread & Countersink
Length Group2 x D
Coolant FedAxial
Coating/FinishBright
MaterialCarbide
Number of Flutes4
Helix Angle (Degrees)30 Degree
Shank Diameter (mm)14 mm
Shank Toleranceh6
Shank StyleHB
Overall Length (mm)90 mm
Flute Length (mm)26.1 mm
Flute DirectionRight Hand, Left Hand
