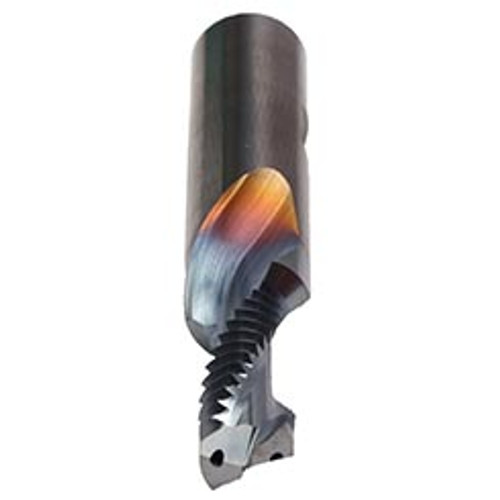

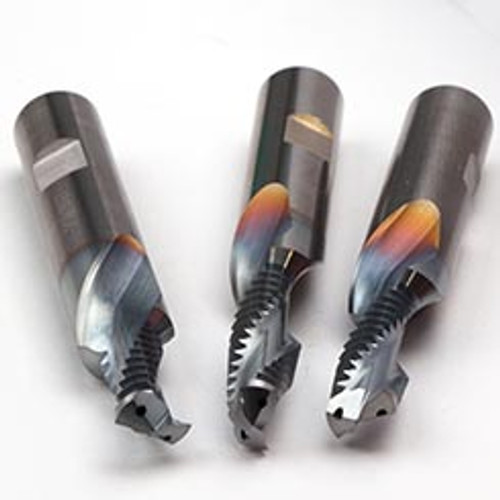

Features:
- For the production of internal threads
- 2-Flute for work in solid materials
Product Specifications
| Cutter Diameter (mm) | 7.7 mm |
| Pitch | 16 |
| Point Angle | 140 Degree |
| Size | 3/8" |
| Thread Standard | UNC |
| Applicable Material | Aluminum Alloys, Cast Iron |
| Application | Drill / Thread / Chamfer |
| Type | BGF-Z2 / Thriller |
| Length Group | 2 x D |
| Coolant Fed | Axial |
| Finish/Coating | TICN |
| Material | Carbide |
| Number of Flutes | 2 |
| Helix Angle (Degrees) | 30 Degree |
| Shank Diameter (mm) | 12 mm |
| Dimension Standards | ASME B1.1 |
| Shank Tolerance | h6 |
| Shank Style | HB |
| Overall Length (mm) | 79 mm |
| Flute Length (mm) | 19.16 mm |
| Flute Spiral Direction | Right Hand, Left Hand |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Cutting Diameter (mm):
7.70mm
Shank Diameter (mm):
12.00mm
Cutting Edge Material:
Carbide
Flute Length (mm):
19.16mm
Point Angle:
140 Degree
Thread Standard:
UNC
Threads per Inch (TPI):
16 TPI
Number of Flutes:
2
Flute Direction:
Right Hand
Finish/Coating:
TiCN
Tool Type:
THRILLER
Overall Length (mm):
79.00mm
interval quantity:
1
