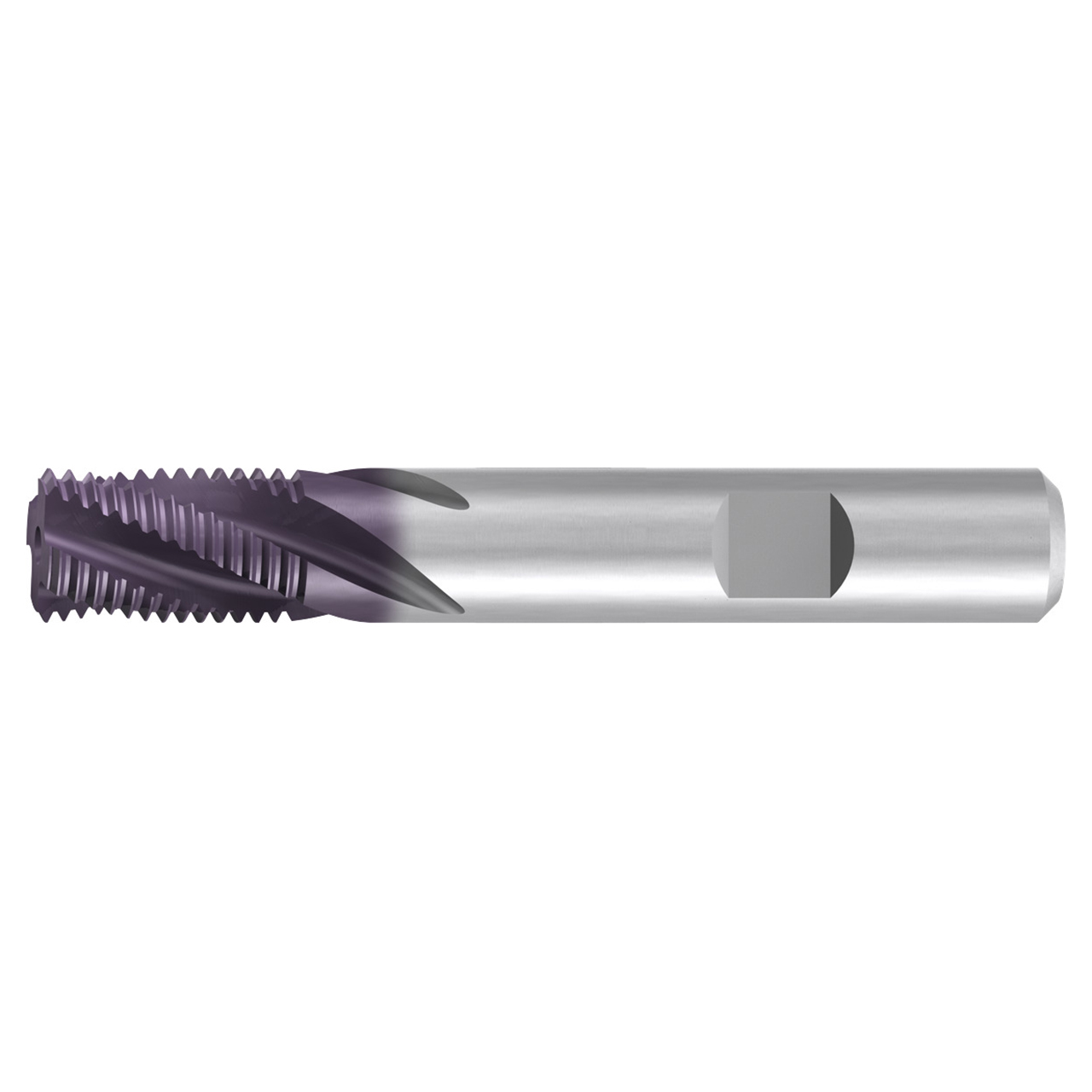

Features:
- For production of internal threads
- Axial coolant fed channel for enhanced chip removal rates
- This tool is for a specific size and pitch with corrected thread profile
- Pre-drilled hole is required
Product Specifications
| Manufacturer Part Number | GFR15106.0112 |
| Cutting Diameter (Decimal Inch) | 0.371" |
| Thread Size | M 12x1.75 |
| Thread Diameter Size | M 12 |
| Thread Standard | M |
| Thread Pitch (mm) | 1.75mm |
| Overall Length (Inch) | 3" |
| Flute Length (Decimal Inch) | 0.392" |
| Dimensional Standards | DIN 13 |
| Shank Tolerance | h6 |
| Tool Cylindrical - Shank Style | Weldon Flat - HB |
| Shank Standard | ASME B94.19 |
| Flute Direction | Right Hand |
| Group Length | 2xD |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 3 |
| Flute Helix Angle (Degree) | 15 Degree |
| Cutting Edge Material | Carbide |
| Coating | TiCN |
| Tool Type | SHUR-THREAD™ |
| Application | Thread Milling |
| Product Type | Thread Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Cutting Diameter (Decimal Inch):
0.3710"
Shank Diameter (Inch):
3/8"
Cutting Edge Material:
Carbide
Flute Length (Decimal Inch):
0.9970"
Thread Size:
M 12 x 1.75
Thread Standard:
M
Number of Flutes:
3
Flute Direction:
Right Hand
Finish/Coating:
TiCN
Tool Type:
SHUR-THREAD
Application:
Thread Milling
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
