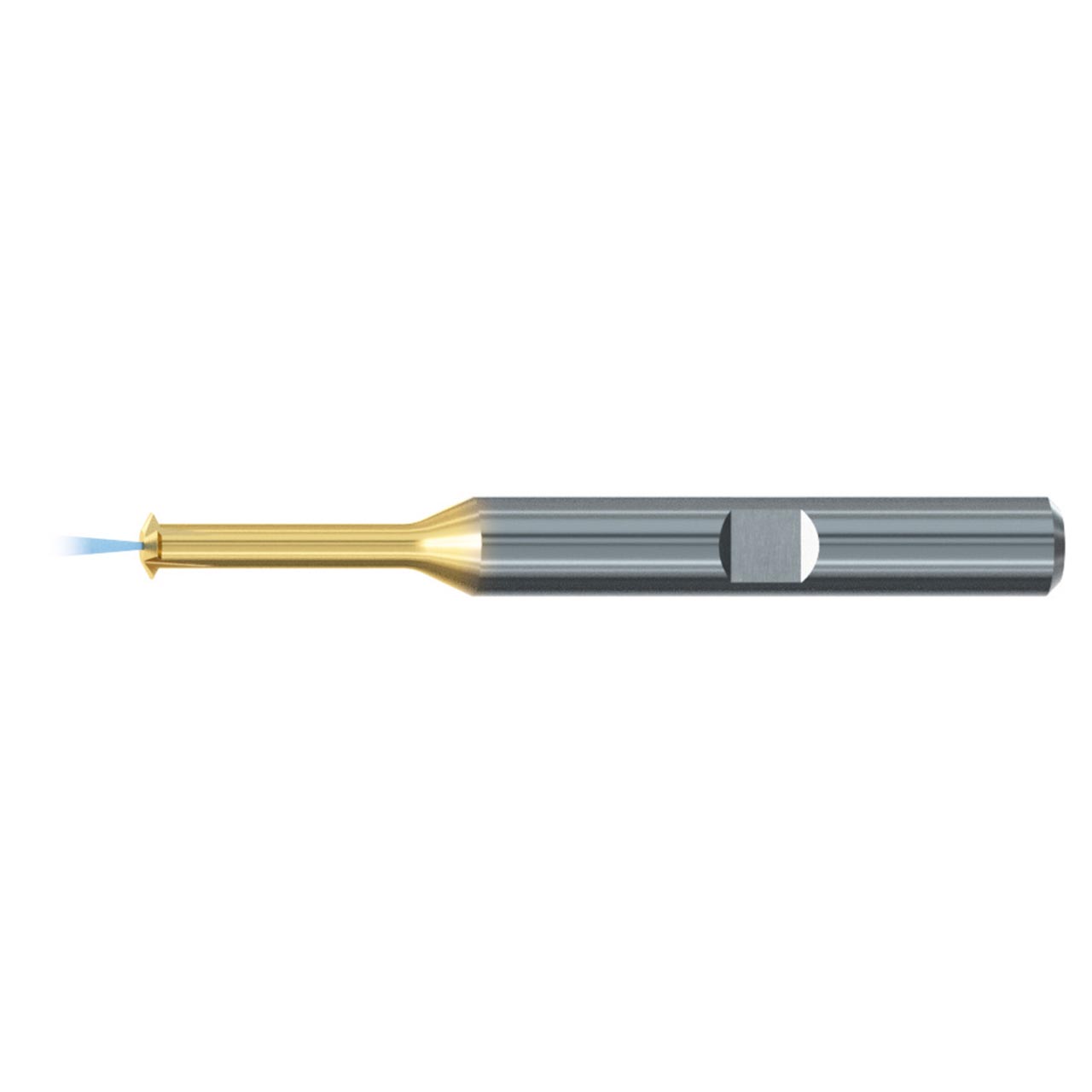

Emuge GFS83105.5045 | 3/8-24 UNF -Thread Mill - MULTI Style -3xD - Coolant Fed

$186.34 $173.29
(You save $13.05)
Brand:
Emuge
Cutting Diameter (Decimal Inch):
0.3230"
Shank Diameter (Inch):
3/8"
Cutting Edge Material:
Carbide
Flute Length (Decimal Inch):
1.1250"
Thread Standard:
UNF
Threads per Inch (TPI):
24 TPI
Number of Flutes:
5
Flute Direction:
Right Hand
Finish/Coating:
TiN-T21
Tool Type:
MULTI-THREAD MILL
Application:
Thread Milling
Overall Length (Decimal Inch):
2.8750"
interval quantity:
1
SKU:
15046449
UPC:
Weight:
0.13 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Emuge GFS83105.5045 | 3/8-24 UNF -Thread Mill - MULTI Style -3xD - Coolant Fed

Related Products

Features:

  • Solid carbide circular thread mill for a wide range of materials
  • Optimized coolant fed cutting geometry that works well in a job shop enviroment with multiple materials

Product Specifications
Cutter Diameter (mm).323"
Pitch24
Size3/8"
Thread StandardUNF
Applicable MaterialUniversal
ApplicationSingle Plane
TypeMULTI-THREAD MILL
Length Group3 x D
Coolant FedAxial
Coating/FinishTIN-T21
MaterialCarbide
Number of Flutes5
Helix Angle (Degrees)0 Degree
Shank Diameter (mm)3/8"
Shank Toleranceh6
Shank StyleHB
Overall Length (mm)2.875"
Flute Length (mm)1.125"
Flute DirectionRight Hand, Left Hand
