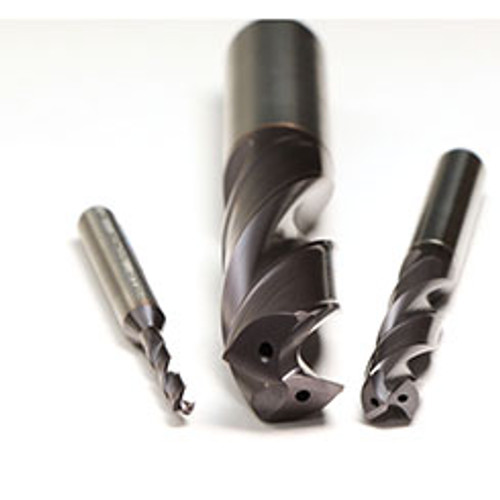

Features:
- High penetration rate carbide drill. Unique web construction. Sub-micro grain carbide
- Creates short consistent chip forms which enables higher penetration rates and accurate hole location
Product Specifications
| Decimal Size (Inch) | 0.6406 |
| Pitch | 14 |
| Point Angle | 140 Degree |
| Size | 41/64 |
| Thread Standard | UNC |
| Applicable Material | Steel, Alloyed Steel, Nickel Alloys, Cast Iron |
| Application | High Penetration Rate Drill |
| Type | EF-Drill |
| Length Group | 3 x D |
| Coolant Fed | Yes |
| Finish/Coating | TiAlN-TA14 |
| Material | Carbide |
| Flutes | 2 |
| Helix Angle (Degrees) | 30 Degree |
| Shank Diameter (mm) | 18 mm |
| Shank Tolerance | h6 |
| Shank Style | HA |
| Overall Length (mm) | 123 mm |
| Flute Length (mm) | 73 mm |
| Flute Spiral Direction | Right Hand |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Drill Bit Size (Inch):
41/64"
Drill Bit Size (Decimal Inch):
0.6406"
Drill Bit Size (mm):
16.27mm
Drill Point Angle:
140 Degree
Flute Length (Inch):
2-7/8"
Flute Length (Decimal Inch):
2.8740"
Flute Length (mm):
73mm
Material:
Carbide
Finish/Coating:
TiAlN-TA14
Cutting Direction:
Right Hand
Coolant Through:
Yes
interval quantity:
1
