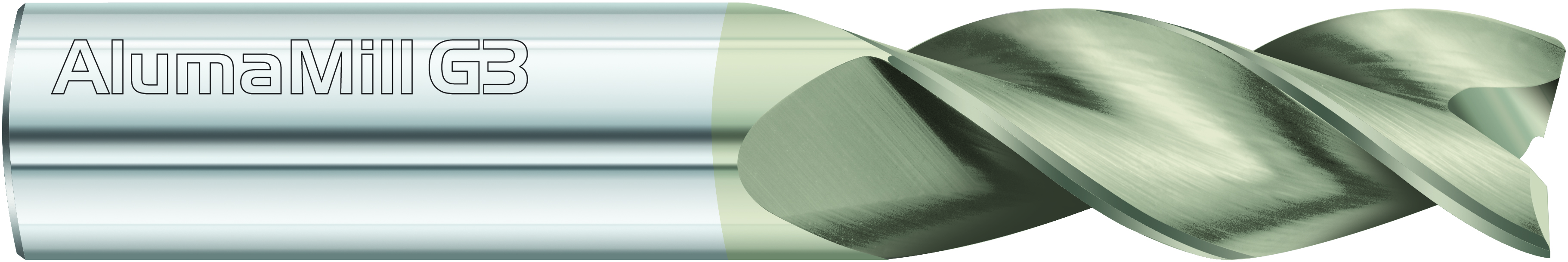

Fullerton Tool 27069 | 1/4" Diameter x 1/4" Shank x 1-1/4" LOC x 3" OAL 3 Flute FC5 Solid Carbide Square End Mill

$67.54 $42.55
(You save $24.99)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Mill Diameter (Inch):
1/4"
Mill Diameter (Decimal Inch):
0.2500"
Mill Diameter (mm):
6.35mm
Number of Flutes:
3
Length of Cut (Inch):
1-1/4"
Length of Cut (Decimal Inch):
1.2500"
Length of Cut (mm):
31.75mm
Material:
Solid Carbide
Finish/Coating:
FC5
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Application:
Aluminum and Non-Ferrous Materials
Single or Double End:
Single
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3"
Overall Length (mm):
76.20mm
Helix Angle:
37.5 Degree
Flute Direction:
Right
Cutting Direction:
Right
Series:
3833 AlumaMill G3
Ships:
From Partner Facility
SKU:
23005117
UPC:
Weight:
1.32 LBS
Shipping:
Calculated at Checkout
Fullerton Tool 27069 | 1/4" Diameter x 1/4" Shank x 1-1/4" LOC x 3" OAL 3 Flute FC5 Solid Carbide Square End Mill

Features

  • The 3833 AlumaMill G3 is a 3-flute, high performance end mill designed for roughing and finishing aluminum and non-ferrous materials
  • It excels in aggressive plunging and ramping speed environments and was designed for fast material removal and multi-purpose machining
  • Its flute shape and relief form generates superior wall finishes, while its unique wiper geometry produces excellent floor finishes
  • The 3833 AlumMill G3 is stocked uncoated and with FC-5 coating

Product Specifications
Mill Diameter (Inch) 1/4"
Cutting Flute Length (Inch) 1-1/4"
Shank Diameter (Inch) 1/4"
Overall Length (Inch) 3"
Mill Diameter (Decimal Inch) 0.2500"
Cutting Flute Length (Decimal Inch) 1.2500"
Shank Diameter (Decimal Inch) 0.2500"
Overall Length (Decimal Inch) 3"
Mill Diameter (mm) 6.35mm
Cutting Flute Length (mm) 31.75mm
Shank Diameter (mm) 6.35mm
Overall Length (mm) 76.20mm
Finish/Coating FC5
Number of Flutes 3
Helix Angle 37.5 Degree
Flute Spiral Direction Right Hand Spiral
Cutting Direction Right Hand Cutting
Coolant Thorugh (Yes/No) No
