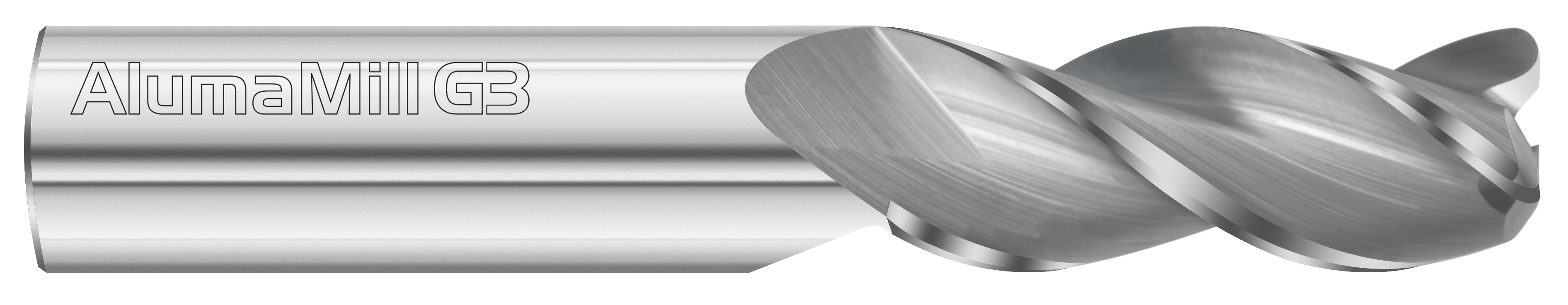

Fullerton Tool 27180 | 3/16" Diameter x 3/16" Shank x 5/16" LOC x 2" OAL 3 Flute Uncoated Solid Carbide Corner Radius End Mill

$30.21 $19.03
(You save $11.18)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Mill Diameter (Inch):
3/16"
Mill Diameter (Decimal Inch):
0.1875"
Mill Diameter (mm):
4.76mm
Number of Flutes:
3
End Type:
Corner Radius
Corner Radius (mm):
0.76mm
Length of Cut (Inch):
5/16"
Length of Cut (Decimal Inch):
0.3125"
Length of Cut (mm):
7.94mm
Material:
Solid Carbide
Finish/Coating:
Uncoated
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Application:
Aluminum & Non-Ferrous Materials
Single or Double End:
Single
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2"
Overall Length (mm):
50.80mm
Series:
3833 AlumaMill G3
Ships:
From Partner Facility
SKU:
23005154
UPC:
Weight:
0.01 LBS
Shipping:
Calculated at Checkout
Fullerton Tool 27180 | 3/16" Diameter x 3/16" Shank x 5/16" LOC x 2" OAL 3 Flute Uncoated Solid Carbide Corner Radius End Mill

Features

  • The 3833 AlumaMill G3 is a 3-flute, high performance end mill designed for roughing and finishing aluminum and non-ferrous materials
  • It excels in aggressive plunging and ramping speed environments and was designed for fast material removal and multi-purpose machining
  • Its flute shape and relief form generates superior wall finishes, while its unique wiper geometry produces excellent floor finishes
  • The 3833 AlumMill G3 is stocked uncoated and with FC-5 coating

Product Specifications
Mill Diameter (Inch) 3/16"
Cutting Flute Length (Inch) 5/16"
Shank Diameter (Inch) 3/16"
Overall Length (Inch) 2"
Mill Diameter (Decimal Inch) 0.1875"
Cutting Flute Length (Decimal Inch) 0.3125"
Shank Diameter (Decimal Inch) 0.1875"
Overall Length (Decimal Inch) 2"
Mill Diameter (mm) 4.76mm
Cutting Flute Length (mm) 7.94mm
Shank Diameter (mm) 4.76mm
Overall Length (mm) 50.80mm
Radius (mm) 0.76mm
Finish/Coating Uncoated
Number of Flutes 3
Helix Angle 37.5 Degree
Flute Spiral Direction Right Hand Spiral
Cutting Direction Right Hand Cutting
Coolant Thorugh (Yes/No) No

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Fullerton Tool
Mill Diameter (Inch):
3/16"
Mill Diameter (Decimal Inch):
0.1875"
Mill Diameter (mm):
4.76mm
Number of Flutes:
3
End Type:
Corner Radius
Corner Radius (mm):
0.76mm
Length of Cut (Inch):
5/16"
Length of Cut (Decimal Inch):
0.3125"
Length of Cut (mm):
7.94mm
Material:
Solid Carbide
Finish/Coating:
Uncoated
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Application:
Aluminum & Non-Ferrous Materials
Single or Double End:
Single
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2"
Overall Length (mm):
50.80mm
Series:
3833 AlumaMill G3
Ships:
From Partner Facility
